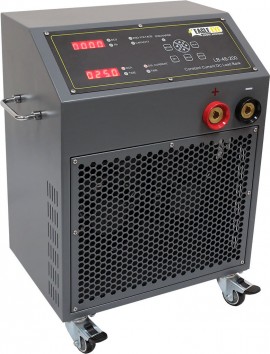

Versatile and accurate, this constant current load bank tests discharge, battery capacity, acceptance, DC systems, and battery maintenance. With data management software, the load bank monitors discharge events in real-time, record data, analyze, remote start and stop tests, and create reports.
Versatile and accurate, this constant current load bank tests discharge, battery capacity, acceptance, DC systems, and battery maintenance. With data management software, the load bank monitors discharge events in real-time, record data, analyze, remote start and stop tests, and create reports.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Reliable and versatile, the constant current load bank has an LED display for voltage, current, and test duration.
Features
| Discharge Voltage Range | Range: 5 to 600 V (auto-sensing) |
| Discharge Current Range | 1 to 2000 A |
| Per Cell Voltage Type | 1 to 12 V VRLA, VLA, NiCad, and more |
| Accuracy | Discharge current: 0.1 A Voltage: 0.1 V |
| Resolution | Discharge Current: ±0.2 A Voltage: ±0.3% V |
| Data Transfer | RS-232, USB |
| Display | Backlit numeric LED (CC) 5" backlit LCD (D/S) |
| Operating Environment | 32 to 104°F (0 to 40°C) |
| Power Requirements | 110/220 VAC 50/60 Hz |
