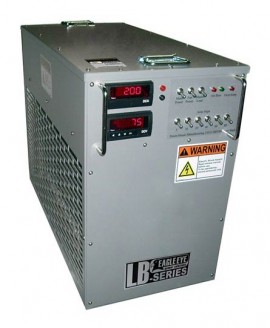

Designed for discharge testing, battery capacity testing, acceptance testing, battery maintenance, engineer testing and any other testing for DC power with load. This unit is portable, easy-to-use, durable and safe.
Designed for discharge testing, battery capacity testing, acceptance testing, battery maintenance, engineer testing and any other testing for DC power with load. This unit is portable, easy-to-use, durable and safe.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Chargers and Power Adapters category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| Main Voltage | AC 220V/110V, 50/60Hz; DC (from batteries discharged) |
| For battery type | 1.2V, 2V, or 2V, 6V and 12V |
| Discharging Current | Accuracy: 1% Resolution: 0.1A or 0.5% |
| Discharge Current Range | 0-500Amp* |
| Discharge Voltage Range | 10V-437V |
| Voltage Accuracy | 0.5% |
| Sampling Interval | 5s –1min |
| LCD Display | 128*64 pixel |
| Temperature | 0°C ~ 40°C |
| Humidity | 5% ~ 90% Relative humidity |
| Safety Standard | CE market, EMC standard |
| Dimension (Main Unit) | -17 x 8 x 12 in (Size: S), 21 x 8 x 15 in (Size: M), 23 x 10 x 18 in (Size: L), 25 x 17 x 29 in (Size: XL) |
| Weight (Main Unit) | 24.2 lbs (Size: S), 33.2 lbs (Size: M), 42.0 lbs (Size: L), 93.0 lbs (Size: XL) |
