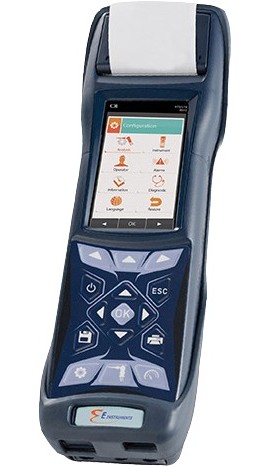

E Instruments E6000-5SC Handheld Gas Analyzer

Model: E6000-5SC

Downloads: datasheet manual

E Instruments E6000-5SC Handheld Gas Analyzer

Model: E6000-5SC

The hand-held gas analyzer is built for monitoring emissions in boilers, engine and other combustion applications. Its field replaceable sensors and built-in printer make it easy to get the job done.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Seitron Novo 3 Combustion Analyzer, O₂/CO/H₂/NO

Model: Novo 3

Quick and intuitive, this combustion analyzer features a 7" (17.78 cm) touch display and a probe with one easy connection. Measure gas and combustion simultaneously with this analyzer which features an integrated water trap with an LED backlight. In addition, this analyzer includes O₂, CO/H₂, and NO sensors.

Learn More

Seitron Novo CxHy Hydrocarbon Sensor for novo series, 0 to 5% volume CH₄

Model: Novo CxHy

Compatible with Nova combustion analyzers, this sensor measures hydrocarbon with a range of 0 to 5% volume CH⁴.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

E Instruments E6000-5SC Offers

Monitor emissions quickly and accurately with the E Instruments E6000-5SC Handheld Gas Analyzer. It holds up to 6 field replaceable sensors that are pre-calibrated for less downtime on the job. With automatic data logging, a mobile app for iOS and Android devices, PC software and a built-in printer, this flue gas and emissions analyzer makes it easy to review test results.

Features

Accommodates O₂, CO, NO, NO₂, SO₂, CxHy (HC) and H₂S sensors, holding up to 6 at a time (Model E6000-5SC comes with O₂, CO, NO, SO₂ and CxHy (HC) sensors only)
Includes a dilution pump for CO auto-range measurements up to 10%
Performs combustion efficiency, CO₂ and excess air calculations and takes differential and draft pressure measurements as well as stack and air temperature measurements
Pre-calibrated gas sensors are field replaceable to keep you on the job without interruption
Full-color graphic display with simple menu selections for ease of use
Automatic data logging and 2,000-test internal memory
Built-in printer uses non-fading paper to provide long-lasting printouts of data
PC software, iOS and Android apps and Bluetooth® technology make it simple to connect to computers, smartphones and tablets to review results
Gas sampling probe has a maximum temperature range of up to 1,470°F (800°C)
Hard ABS plastic case keeps the analyzer and components stored neatly and ready to take with you to the jobsite
Applications Boilers, Burners, Gas and Diesel Engines, Turbines, Furnaces, Kilns, Heaters, Laboratory Analysis

E Instruments E6000-5SC Specifications

Compatible Gas Type(s)	Multiple
Gas Measurement Range	O₂: 0 to 25%; CO: 0 to 8,000 ppm; CO diluted: 0.8 to 10%; NO: 0 to 5,000 ppm; NO₂: 0 to 1,000 ppm; Low NO/NO₂: 0 to 100.0 ppm; SO₂: 0 to 5,000 ppm; Low SO₂: 0 to 100.0 ppm; CxHy (HC): 0 to 5%; H₂S: 0 to 500.0 ppm; CO₂ (calculated): 0 to 99.9%; NOx (calculated): 0 to 5,000 ppm
Gas Resolution	O₂: 0.1%; CO: 1 ppm; CO diluted: 0.1%; NO: 1 ppm; NO₂: 1 ppm; Low NO/NO₂: 0.1 ppm; SO₂: 1 ppm; Low SO₂: 0.1 ppm; CxHy (HC): 0.01%; H₂S: 0.1 ppm; CO₂ (calculated): 0.1%; NOx (calculated): 1 ppm
Gas Accuracy	O₂: ±0.2% vol; CO: ±8 ppm <200 ppm, ±5% rdg up to 2000 ppm, ±10% rdg for >2000 ppm; CO diluted: ±10% rdg; NO: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; NO₂: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; Low NO/NO₂: ±1.5 ppm <40 ppm, ±5% rdg for <100ppm; SO₂: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; Low SO₂: ±1.5 ppm <40 ppm, ±5% rdg for <100ppm; CxHy (HC): ±5% full scale; H₂S: ±5 ppm <125.0 ppm, ±4% rdg for <500.0 ppm
Combustion Efficiency	0 to 100%
Pressure Measurement Range	-4 to 80 inH₂O; -10 to 200 mbar
Pressure Resolution	0.001 inH₂O; 0.01 mbar
Pressure Accuracy	±1% rdg
Internal Storage Capacity	2,000 tests
Power Source	Battery powered
Battery Type	Battery pack
Rechargeable Battery	Yes
Software Compatibility	PC
Product Length	12" (300 mm) probe; 10' (3 m) dual hose

Click here for complete specifications on the E Instruments E6000-5SC

What's included with the E Instruments E6000-5SC

E6000 Hand-Held Gas Analyzer
Calibration Certificate
O₂, CO, NO, SO₂ and CxHy (HC) Gas Sensors
Gas Sampling Probe and Hose
Water Trap with Filter Cartridge
Magnetic Rubber Holster
PC Software
USB Cable
Rechargeable Lithium-Ion Battery
AC Charger
ABS Carrying Case
Owner's Manual

datasheet for the E Instruments E6000-5SC Handheld Gas Analyzer manual for the E Instruments E6000-5SC Handheld Gas Analyzer

Description ➕➖

E Instruments E6000-5SC Offers

Features

Accommodates O₂, CO, NO, NO₂, SO₂, CxHy (HC) and H₂S sensors, holding up to 6 at a time (Model E6000-5SC comes with O₂, CO, NO, SO₂ and CxHy (HC) sensors only)
Includes a dilution pump for CO auto-range measurements up to 10%
Performs combustion efficiency, CO₂ and excess air calculations and takes differential and draft pressure measurements as well as stack and air temperature measurements
Pre-calibrated gas sensors are field replaceable to keep you on the job without interruption
Full-color graphic display with simple menu selections for ease of use
Automatic data logging and 2,000-test internal memory
Built-in printer uses non-fading paper to provide long-lasting printouts of data
PC software, iOS and Android apps and Bluetooth® technology make it simple to connect to computers, smartphones and tablets to review results
Gas sampling probe has a maximum temperature range of up to 1,470°F (800°C)
Hard ABS plastic case keeps the analyzer and components stored neatly and ready to take with you to the jobsite
Applications Boilers, Burners, Gas and Diesel Engines, Turbines, Furnaces, Kilns, Heaters, Laboratory Analysis

Specifications ➕➖

E Instruments E6000-5SC Specifications

Compatible Gas Type(s)	Multiple
Gas Measurement Range	O₂: 0 to 25%; CO: 0 to 8,000 ppm; CO diluted: 0.8 to 10%; NO: 0 to 5,000 ppm; NO₂: 0 to 1,000 ppm; Low NO/NO₂: 0 to 100.0 ppm; SO₂: 0 to 5,000 ppm; Low SO₂: 0 to 100.0 ppm; CxHy (HC): 0 to 5%; H₂S: 0 to 500.0 ppm; CO₂ (calculated): 0 to 99.9%; NOx (calculated): 0 to 5,000 ppm
Gas Resolution	O₂: 0.1%; CO: 1 ppm; CO diluted: 0.1%; NO: 1 ppm; NO₂: 1 ppm; Low NO/NO₂: 0.1 ppm; SO₂: 1 ppm; Low SO₂: 0.1 ppm; CxHy (HC): 0.01%; H₂S: 0.1 ppm; CO₂ (calculated): 0.1%; NOx (calculated): 1 ppm
Gas Accuracy	O₂: ±0.2% vol; CO: ±8 ppm <200 ppm, ±5% rdg up to 2000 ppm, ±10% rdg for >2000 ppm; CO diluted: ±10% rdg; NO: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; NO₂: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; Low NO/NO₂: ±1.5 ppm <40 ppm, ±5% rdg for <100ppm; SO₂: ±5 ppm <100 ppm, ±5% rdg for >100 ppm; Low SO₂: ±1.5 ppm <40 ppm, ±5% rdg for <100ppm; CxHy (HC): ±5% full scale; H₂S: ±5 ppm <125.0 ppm, ±4% rdg for <500.0 ppm
Combustion Efficiency	0 to 100%
Pressure Measurement Range	-4 to 80 inH₂O; -10 to 200 mbar
Pressure Resolution	0.001 inH₂O; 0.01 mbar
Pressure Accuracy	±1% rdg
Internal Storage Capacity	2,000 tests
Power Source	Battery powered
Battery Type	Battery pack
Rechargeable Battery	Yes
Software Compatibility	PC
Product Length	12" (300 mm) probe; 10' (3 m) dual hose
