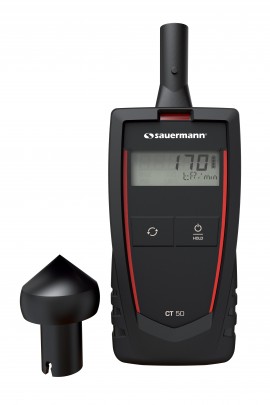

The portable handheld tachometer comes with built-in contact and optical probe (from 0 to 60 000RPM and 0 to 3000 m/min) and has a 20-minute auto shut-off.
The portable handheld tachometer comes with built-in contact and optical probe (from 0 to 60 000RPM and 0 to 3000 m/min) and has a 20-minute auto shut-off.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
| Measuring Units | Optical velocity: rpm Contact velocity: rpm, in/min, ft/min, m/min, m/s |
| Measuring Range | Optical Velocity: 60 to 60 000 rpm Contact velocity: 30 to 30 000 rpm |
| Optical Velocity Accuracy | 60 to 10,000 rpm: ±0.3% of reading ±1 rpm 10,001 to 60,000: ±30 rpm |
| Contact Velocity Accuracy | 30 to 3,000 rpm: ±1% of reading ±1 rpm |
| Velocity Resolution | Optical/Contact: 1 rpm |
| Response Time | Temperature: T63 = 5 s Humidity: T63 = 4 s |
| Conditions of Use | 32 to 122°F (0 to 50°C) in non-condensing conditions 0 to 6550 ft (0 to 2000 m) |
| Storage Temperature | 4 to 176°F (-20 to 80°C) |
| Temperature Measuring Element | Phototransistor, sighting distance max 15.5 in (40 cm) |
| Humidity Measuring Element | ETC Adapter positioned on optical probe |
| Power Supply | 4 AAA batteries LR03 1.5 V |
| Battery Life | 20 hrs |
| European Directives | 2014/30/EU EMC ; 2014/35/EU low voltage 2011/65/EU RoHS II ; 2012/19/EU WEEE |
| Size | 2.8 x 1.3 x 7.7" (71.12 x 33.02 x 195.58 mm) |
| Weight | 7 oz (198.45 g) with batteries |
| Measuring Units | Optical velocity: rpm Contact velocity: rpm, in/min, ft/min, m/min, m/s |
| Measuring Range | Optical Velocity: 60 to 60 000 rpm Contact velocity: 30 to 30 000 rpm |
| Optical Velocity Accuracy | 60 to 10,000 rpm: ±0.3% of reading ±1 rpm 10,001 to 60,000: ±30 rpm |
| Contact Velocity Accuracy | 30 to 3,000 rpm: ±1% of reading ±1 rpm |
| Velocity Resolution | Optical/Contact: 1 rpm |
| Response Time | Temperature: T63 = 5 s Humidity: T63 = 4 s |
| Conditions of Use | 32 to 122°F (0 to 50°C) in non-condensing conditions 0 to 6550 ft (0 to 2000 m) |
| Storage Temperature | 4 to 176°F (-20 to 80°C) |
| Temperature Measuring Element | Phototransistor, sighting distance max 15.5 in (40 cm) |
| Humidity Measuring Element | ETC Adapter positioned on optical probe |
| Power Supply | 4 AAA batteries LR03 1.5 V |
| Battery Life | 20 hrs |
| European Directives | 2014/30/EU EMC ; 2014/35/EU low voltage 2011/65/EU RoHS II ; 2012/19/EU WEEE |
| Size | 2.8 x 1.3 x 7.7" (71.12 x 33.02 x 195.58 mm) |
| Weight | 7 oz (198.45 g) with batteries |
