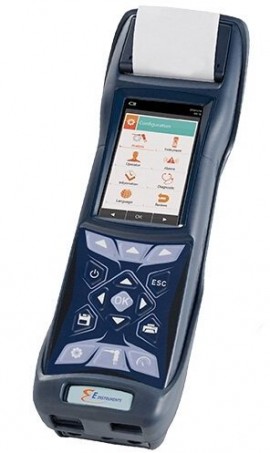

E Instruments 4500-N-LOW Industrial and Commercial Combustion Analyzer, with O2, CO, CO2, LOW NO, Nox and LOW NO2

Model: 4500-N-LOW | Order No: BTU4500-N-LOW

Downloads: datasheet

E Instruments 4500-N-LOW Industrial and Commercial Combustion Analyzer, with O2, CO, CO2, LOW NO, Nox and LOW NO2

Model: 4500-N-LOW | Order No: BTU4500-N-LOW

The industrial and commercial combustion analyzer with O2, CO, CO2, LOW NO, Nox and LOW NO2 is a valuable hand-held tool designed for emissions monitoring and maintenance and tuning of combustion processes including boilers, burners, gas and diesel engines, turbines, furnaces, kilns, heaters, and laboratory analysis.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Seitron Novo 4N Combustion Analyzer, O₂/CO/H₂/NO/NO₂

Model: Novo 4N

Quick and intuitive, this combustion analyzer features a 7" (17.78 cm) touch display and a probe with one easy connection. Measure gas and combustion simultaneously with this analyzer which features an integrated water trap with an LED backlight. In addition, this analyzer includes O₂, CO/H₂, NO, and NO₂ sensors.

Learn More

Seitron Novo 4N-P Combustion Analyzer with integrated printer, O₂/CO/H₂/NO/NO₂

Model: Novo 4N-P

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

E Instruments 4500-N-LOW Offers

Features

Unbreakable metal hose connectors
Dilution pump for CO auto-range measurements up to 100,000 ppm (10%)
Built-in impact printer (non-thermal)
Low NOx capable with 0.1 ppm resolution
All gas sensors are pre-calibrated and field replaceable
Efficiency, excess air, and CO₂ calculations
Stack gas and air temperature measurements
Draft and differential pressure measurements
External water trap for condensate removal
Rechargeable lithium ion battery pack
Internal memory (up to 900 tests)
PC software package

E Instruments 4500-N-LOW Specifications

0₂	Sensor: Electrochemical Range: 0 to 25% Resolution: 0.1% Accuracy: ±0.2% vol
CO (H₂ compensated with built-in NOx filter)	Sensor: Electrochemical Range: 0 to 8000 ppm Resolution: 1 ppm Accuracy: ±8 ppm <400 ppm ±5% rdg up to 2000 ppm >br> ±10% rdg for >2000 ppm
CO Diluted	Sensor: Electrochemical Range: 0.8 to 10.00% Resolution: 0.1% Accuracy: ±10% rdg
CO₂	Sensor: Calculated Range: 0 to 99.9% Resolution: 0.1%
NO	Sensor:Electrochemical Range: 0 to 5000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
NO₂	Sensor: Electrochemical Range: 0 to 1000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
Low NO	Sensor: Electrochemical Range: 0 to 100.0 ppm Resolution: 0.1 ppm ±1.5 ppm <40 ppm ±5% rdg for <100 ppm
NOx	Sensor: Calculated Range: 0 to 5000 ppm Resolution: 1 ppm
SO₂	Sensor: Electrochemical Range: 0 to 5000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
CxHy (HC)	Sensor:Pellistor Range: 0 to 5% Resolution: 0.01% Accuracy: ±5% full scale
Tair	Sensor:Pt100 Range: -4 to 248°F (-20 to 120°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1°F (±1°C)
Tgas	Sensor: TcK Range: -4 to 2280°F (-20 to 1250°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2°F (±2°C)l
Differential Temperature	Sensor: Calculated Range: -4 to 2280°F (-20 to 1250°C) Resolution: 0.1°F (0.1°C)
Pressure/Draft	Sensor: Semiconductor Range: -4 to 80 in H₂O -10 to 200 mbar Resolution: 0.001 in H₂O 0.01 mbar Accuracy: ±1% rdg.
Excess Air	Sensor: Calculated Range: 0 to 850% Resolution: 1%
Efficiency	Sensor: Calculated Range: 0 to 100% Resolution: 0.1%

Click here for complete specifications on the E Instruments 4500-N-LOW

What's included with the E Instruments 4500-N-LOW

E Instruments 4500-N-LOW Industrial and Commercial Combustion Analyzer, with O2, CO, CO2, LOW NO, Nox and LOW NO2

datasheet for the E Instruments 4500-N-LOW Industrial and Commercial Combustion Analyzer, with O2, CO, CO2, LOW NO, Nox and LOW NO2

Description ➕➖

E Instruments 4500-N-LOW Offers

Features

Unbreakable metal hose connectors
Dilution pump for CO auto-range measurements up to 100,000 ppm (10%)
Built-in impact printer (non-thermal)
Low NOx capable with 0.1 ppm resolution
All gas sensors are pre-calibrated and field replaceable
Efficiency, excess air, and CO₂ calculations
Stack gas and air temperature measurements
Draft and differential pressure measurements
External water trap for condensate removal
Rechargeable lithium ion battery pack
Internal memory (up to 900 tests)
PC software package

Specifications ➕➖

E Instruments 4500-N-LOW Specifications

0₂	Sensor: Electrochemical Range: 0 to 25% Resolution: 0.1% Accuracy: ±0.2% vol
CO (H₂ compensated with built-in NOx filter)	Sensor: Electrochemical Range: 0 to 8000 ppm Resolution: 1 ppm Accuracy: ±8 ppm <400 ppm ±5% rdg up to 2000 ppm >br> ±10% rdg for >2000 ppm
CO Diluted	Sensor: Electrochemical Range: 0.8 to 10.00% Resolution: 0.1% Accuracy: ±10% rdg
CO₂	Sensor: Calculated Range: 0 to 99.9% Resolution: 0.1%
NO	Sensor:Electrochemical Range: 0 to 5000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
NO₂	Sensor: Electrochemical Range: 0 to 1000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
Low NO	Sensor: Electrochemical Range: 0 to 100.0 ppm Resolution: 0.1 ppm ±1.5 ppm <40 ppm ±5% rdg for <100 ppm
NOx	Sensor: Calculated Range: 0 to 5000 ppm Resolution: 1 ppm
SO₂	Sensor: Electrochemical Range: 0 to 5000 ppm Resolution: 1 ppm Accuracy: ±5 ppm <100 ppm ±5% rdg for >100 ppm
CxHy (HC)	Sensor:Pellistor Range: 0 to 5% Resolution: 0.01% Accuracy: ±5% full scale
Tair	Sensor:Pt100 Range: -4 to 248°F (-20 to 120°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1°F (±1°C)
Tgas	Sensor: TcK Range: -4 to 2280°F (-20 to 1250°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2°F (±2°C)l
Differential Temperature	Sensor: Calculated Range: -4 to 2280°F (-20 to 1250°C) Resolution: 0.1°F (0.1°C)
Pressure/Draft	Sensor: Semiconductor Range: -4 to 80 in H₂O -10 to 200 mbar Resolution: 0.001 in H₂O 0.01 mbar Accuracy: ±1% rdg.
Excess Air	Sensor: Calculated Range: 0 to 850% Resolution: 1%
Efficiency	Sensor: Calculated Range: 0 to 100% Resolution: 0.1%
