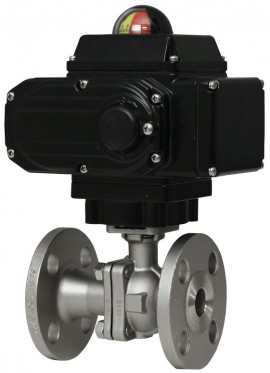

Incorporates a V-port ball valve for impressive flow rates with minimal pressure drop. Quarter turn control ball valves are compact, lighter weight and much less expensive than comparable sized globe valves and segmented control valves.
Incorporates a V-port ball valve for impressive flow rates with minimal pressure drop. Quarter turn control ball valves are compact, lighter weight and much less expensive than comparable sized globe valves and segmented control valves.
Features
Applications
| Service | Compatible liquids and gases |
| Body | 2-piece |
| End Connections | 150# ANSI flange |
| Wetted Materials | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE |
| Temperature Limits | -20 to 392°F (-29 to 200°C) |
| Other Materials | O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC |
| V-Ball Angle | 60° v-ball |
| Actuator Voltage | 110 VAC |
| Service | Compatible liquids and gases |
| Body | 2-piece |
| End Connections | 150# ANSI flange |
| Wetted Materials | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE |
| Temperature Limits | -20 to 392°F (-29 to 200°C) |
| Other Materials | O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC |
| V-Ball Angle | 60° v-ball |
| Actuator Voltage | 110 VAC |
