Accurate within ±3% of full scale reading. Scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube.
Accurate within ±3% of full scale reading. Scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube.

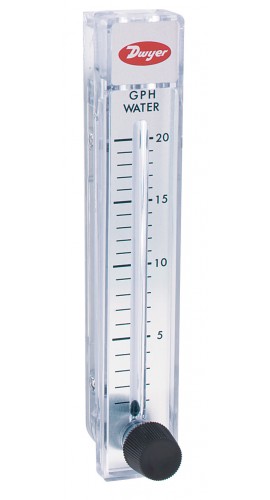

The Rate-Master® Flowmeter line of direct reading precision flowmeters incorporates many unique user Features at moderate cost. These low cost flowmeters are ideal for general use.
| Service | Compatible gases and liquids |
| Wetted Materials | Body: Polycarbonate O-ring: Neoprene and Buna-N Metal parts: stainless steel (except for optional brass valve) Float: stainless steel, black glass, aluminum, K monel, tungsten carbide depending on range |
| Temperature Limit | 130°F (54°C) |
| Pressure Limit | 100 psi (6.9 bar) |
| Accuracy | RMA: 4% RMB: 3% RMC: 2% of full scale |
| Process Connection | RMA: 1/8" RMB: 1/4" RMC: 1/2" female NPT |
| Weight | RMA: 4 oz (113.4 g) RMB: 13 oz (368.5 g) RMC: 39 oz (1105.6 g) |
| Service | Compatible gases and liquids |
| Wetted Materials | Body: Polycarbonate O-ring: Neoprene and Buna-N Metal parts: stainless steel (except for optional brass valve) Float: stainless steel, black glass, aluminum, K monel, tungsten carbide depending on range |
| Temperature Limit | 130°F (54°C) |
| Pressure Limit | 100 psi (6.9 bar) |
| Accuracy | RMA: 4% RMB: 3% RMC: 2% of full scale |
| Process Connection | RMA: 1/8" RMB: 1/4" RMC: 1/2" female NPT |
| Weight | RMA: 4 oz (113.4 g) RMB: 13 oz (368.5 g) RMC: 39 oz (1105.6 g) |
