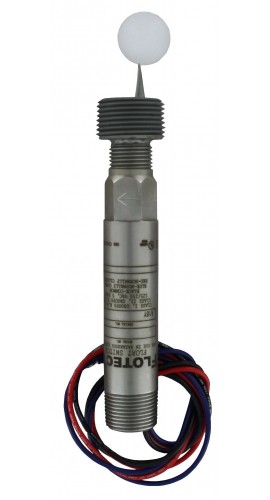

Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Model: L6EPB-B-S-3-C

Downloads: datasheet manual

Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

Model: L6EPB-B-S-3-C

Features a weatherproof, explosion-proof, and leak-proof (lower) body for demanding outdoor applications. It has a brass body, SPDT float material, NPT process connection, and a float type and installation of 304 SS, spherical, side wall mount.

Sale Price	$428.77 USD
Regular Price	$468.60 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Dwyer L6EPB-B-S-3-C Offers

Features

Compact design is built for years of trouble-free service
Simple and dependable operation with no mechanical linkage
Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
Leak proof lower body machined from bar stock
Side wall mounting
Weatherproof and explosion-proof body for demanding outdoor applications
Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
Sensitive to level changes of less than 1/2" (12 mm)

Applications

Direct pump control for maintaining level
Automatic tank dump operations
Level control
Valve control
Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes

Dwyer L6EPB-B-S-3-C Specifications

Service	Liquids compatible with wetted materials
Wetted Materials	Float: 304 SS Lower Body: Brass Magnet: Ceramic
Temperature Limit	-4 to 220°F (-20 to 105°C)
Pressure Limits	Maximum pressure 350 psig (24.1 bar)
Enclosure Rating	Weatherproof and explosion-proof Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Switch Type	SPDT snap switch
Electrical Rating	5 A at 125/250 VAC (V~)
Electrical Connections	18 AWG, 18" (460 mm) long
Upper Body	Brass
Conduit Connection	3/4" male NPT
Process Connection	1" male NPT
Mounting Orientation	Horizontal with index arrow pointing down
Specific Gravity	Minimum 0.7
Weight	Approximately 1 lb (0.5 kg)

Click here for complete specifications on the Dwyer L6EPB-B-S-3-C

What's included with the Dwyer L6EPB-B-S-3-C

Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float

datasheet for the Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float manual for the Dwyer L6EPB-B-S-3-C Liquid Level Switch, Brass Housing, 304 SS Float
