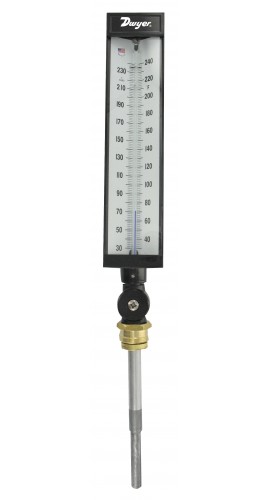

Features a 9" scale and an 3-1/2" adjustable angle stem. Has a die cast aluminum body for extra durability in industrial environments.
Features a 9" scale and an 3-1/2" adjustable angle stem. Has a die cast aluminum body for extra durability in industrial environments.
Allows users to easily take accurate temperature measurements in any environment. The thermometer case is made of die cast aluminum for extra durability in industrial environments. The glass lens is easily cleaned and resists scratches for better viewing of the scale. The stem can be adjusted 180° in order to achieve the best viewing angle.
Features
Applications
Boiler or chiller temperature monitoring.
| Wetted Material | Tapered cast aluminum with graphite fill |
| Housing Material | Aluminum |
| Accuracy | 1% |
| Lens | Glass |
| Scales | Aluminum painted white with black markings |
| Process Connection | 1-1/4-18 NEF thread |
| Liquid Filling | Organic blue liquid filled tube |
| Mounting | Adjustable Stem: Vertical Plane 180° Horizontal Plane 360° |
| Weight | 1 lb 7 oz (0.65 kg) |
| Wetted Material | Tapered cast aluminum with graphite fill |
| Housing Material | Aluminum |
| Accuracy | 1% |
| Lens | Glass |
| Scales | Aluminum painted white with black markings |
| Process Connection | 1-1/4-18 NEF thread |
| Liquid Filling | Organic blue liquid filled tube |
| Mounting | Adjustable Stem: Vertical Plane 180° Horizontal Plane 360° |
| Weight | 1 lb 7 oz (0.65 kg) |
