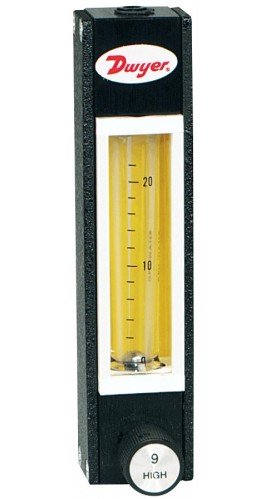

Accurately measure flow rates of air or water with the convenience of a direct reading scale. Features a 65mm Scale and does not include a valve.
Accurately measure flow rates of air or water with the convenience of a direct reading scale. Features a 65mm Scale and does not include a valve.
Permanently fused ceramic scale has integral float guides for optimum float performance. Reflective plastic background and 1.5 X magnification lens reduces eye fatigue and allows for more accurate readings. Units include a safety blow-out back panel for additional protection. Flowmeters are shipped completely assembled and include standard panel mounting hardware for quick installation.
Applications
| Service | Compatible gases or liquids |
| Wetted Materials | Flowtube: Borosilicate glass Float: 316 SS (black glass as indicated) Float stops: PTFE End fittings: Anodized aluminum or 316 SS O-rings: Buna-N on aluminum models and fluoroelastomer on SS models |
| Temperature Limits | 250°F (121°C) |
| Pressure Limits | 250 psig (17 bar) |
| Accuracy | ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute) |
| Repeatability | ±0.25% of scale reading |
| Scales | Direct reading 65 mm or 150 mm scales for air or water |
| Turn-down Ratio | 0.4173611111111111 |
| Connection | 1/8" female NPT |
| Mounting | Vertical |
| Valve | 6-turn needle (standard on models with valve) |
| Service | Compatible gases or liquids |
| Wetted Materials | Flowtube: Borosilicate glass Float: 316 SS (black glass as indicated) Float stops: PTFE End fittings: Anodized aluminum or 316 SS O-rings: Buna-N on aluminum models and fluoroelastomer on SS models |
| Temperature Limits | 250°F (121°C) |
| Pressure Limits | 250 psig (17 bar) |
| Accuracy | ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute) |
| Repeatability | ±0.25% of scale reading |
| Scales | Direct reading 65 mm or 150 mm scales for air or water |
| Turn-down Ratio | 0.4173611111111111 |
| Connection | 1/8" female NPT |
| Mounting | Vertical |
| Valve | 6-turn needle (standard on models with valve) |
