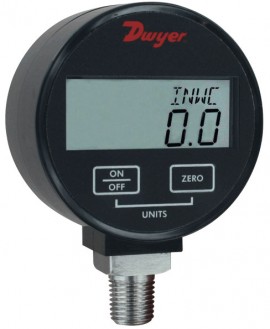

Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy, 0 to 50 psi

Model: DPGW-07

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy, 0 to 50 psi

Model: DPGW-07

The only economic digital pressure gauge for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, it's the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.

Sale Price	$172.02 USD
Regular Price	$188.00 USD
Availability	5 to 6 Weeks6 to 7 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Traceable Calibration Certificate for your Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Dwyer DPGA & DPGW Series Offers

Features - Series DPGA

Only economic digital pressure gauge with selectable engineering units on the market
Accuracy of 1%
Digital push-button zero

Applications - Series DPGA

Digitally monitoring the pressures of air and compatible gases
Process applications
Process start-up
OEM applications

Features - Series DPGW

Only economic digital pressure gauge for liquids with the ability to select engineering units on the market
Accuracy of 1%
Digital push-button zero

Applications - Series DPGW

Digitally monitoring the pressures of air and compatible gases
Process applications
Process start-up
OEM applications

Dwyer DPGW-07 Specifications

Range	0 to 50 psi
Selectable Engineering Units	50.00 psig, 3.515 kg/cm², 3.447 bar, 101.8" Hg, 115.3 ft w.c., 344.7 kPa, 800 oz/in², 1384" w.c., 3447 mbar, 3515 cm w.c., 2586 mm Hg
Resolution	0.02 psi
Service	Compatible Liquids & Gases
Wetted Materials	316L SS
Housing Materials	ABS Plastic
Pressure Limits	2x Pressure Range
Vacuum Range	Maximum Pressure: 30 psig
Temperature Limits	30 to 120°F (-1 to 49°C)
Thermal Effect	0.05% FS/°F
Process Connection	1/4" male NPT
Auto Shut-Off	20 minute
Dimensions	2.62 x 1.52"
Weight	5.6 oz (160g)

Click here for complete specifications on the Dwyer DPGW-07

What's included with the Dwyer DPGW-07

Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy, 0 to 50 psi

datasheet for the Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy, 0 to 50 psi manual for the Dwyer DPGW-07 Digital Pressure Gauge for Liquid/Gas with 1% Accuracy, 0 to 50 psi
