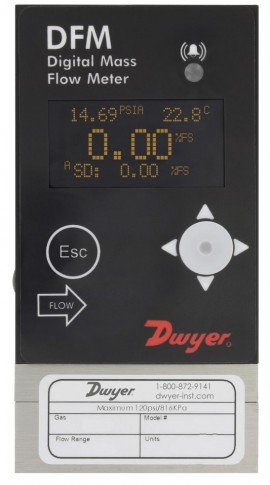

Dwyer DFM-48010-V-ALA2 Digital Flow Meter, 0 to 10 l/min

Downloads: datasheet manual

Features 0 to 10 l/min with LED and can measure up to 30 different gases using an OLED/joystick interface.

Features

Quick (<20 ms) response time
Multi-parameter functionality
Multi-gas functionality
Capable of storing up to 90 gases and 20 custom gas mixes
Simple field configuration
Modifiable outputs
High, low or in-range alarms with preset action delay for mass flow, temperature and pressure

Applications

Service	Clean, non-corrosive gases compatible with wetted parts
Pressure Range	0 to 10 l/min
Pressure Limits	120 psig (8.27 bar)
Accuracy	±(0.5% of reading + 0.2% FS)
Repeatability	±0.15% FS
Response Time	10 ms
Output	0 to 5 V DC
Wetted Materials	316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold FKM O-rings
Relay Rating	Programmable solid state relay
Maximum Particulate Size	20 μm
Temperature Limits	14 to 140°F (-10 to 60°C)
Power Supply	9 to 26 V DC
Process Connections	⅛" compression fitting
Leak Integrity	1 x 10^-9 sccs of helium
Display	2 x 16 character OLED
Digital Interface	RS-232 default (RS-485 display selectable)
Agency Approvals	CE
Dimensions	4.58 x 2.38 x 1.05" (116.33 x 60.45 x 26.67 mm)
Weight	0.85 lbs (0.4 kg)

datasheet for the Dwyer DFM-48010-V-ALA2 Digital Flow Meter, 0 to 10 l/min manual for the Dwyer DFM-48010-V-ALA2 Digital Flow Meter, 0 to 10 l/min
