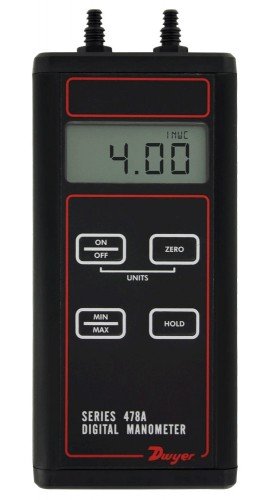

Measure Positive and Negative Pressures. One-Button Auto-Zero Function.
Measure Positive and Negative Pressures. One-Button Auto-Zero Function.
Specifications
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1.5% F.S. @ 72°F (22.2°C). Includes linearity and repeatability.
Pressure Hysteresis: ±0.1% of F.S.
Pressure Limits: 5 psig (.34 bar).
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Thermal Effect: 0.05% F.S./°F.
Display: 4 digit LCD (.425"H x .234"W digits).
Power Requirements: 9V alkaline battery. Battery included but not connected.
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
Weight: 10.8 oz (306 g).
Agency Approvals: CE.
Features
Applications
| Service | Air and compatible gases |
| Accuracy | ±1.5% FS at 72°F (22.2°C). Includes linearity and repeatability |
| Pressure Hysteresis | ±0.1% FS |
| Pressure Limits | 5 psig (0.74 bar) |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C) |
| Compensated Temperature Limits | 32 to 104°F (0 to 40°C) |
| Thermal Effect | 0.05% FS/°F |
| Display | 4 digit LCD (0.425 x 0.234" digits) |
| Power Requirements | 9 V alkaline battery, installed non-functional, user replaceable |
| Process Connections | For use with 3/16" or 1/4" ID tubing |
| Weight | 10.8 oz (306 g) |
| Agency Approvals | CE |
| Service | Air and compatible gases |
| Accuracy | ±1.5% FS at 72°F (22.2°C). Includes linearity and repeatability |
| Pressure Hysteresis | ±0.1% FS |
| Pressure Limits | 5 psig (0.74 bar) |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C) |
| Compensated Temperature Limits | 32 to 104°F (0 to 40°C) |
| Thermal Effect | 0.05% FS/°F |
| Display | 4 digit LCD (0.425 x 0.234" digits) |
| Power Requirements | 9 V alkaline battery, installed non-functional, user replaceable |
| Process Connections | For use with 3/16" or 1/4" ID tubing |
| Weight | 10.8 oz (306 g) |
| Agency Approvals | CE |
