Ideal for space-constrained applications, this RTD probe to USB adapter measures 100 Ω Pt100 and communicates with the instrument in virtual COM port mode. Moreover, this calibratable converter provides ±0.108°F (±0.06°C) accuracy temperature measurements using a 2/3-wire sensor connected via a standard 3-pin mini RTD connector.
Ideal for space-constrained applications, this RTD probe to USB adapter measures 100 Ω Pt100 and communicates with the instrument in virtual COM port mode. Moreover, this calibratable converter provides ±0.108°F (±0.06°C) accuracy temperature measurements using a 2/3-wire sensor connected via a standard 3-pin mini RTD connector.

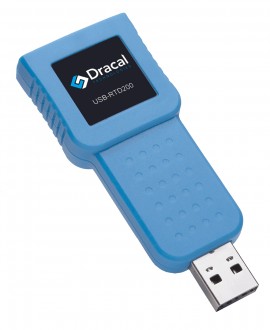

The RTD200 is a universal USB adapter designed to accurately measure a wide range of temperatures using an RTD Pt100 sensor, much like other members of the RTD series. With exceptional accuracy of ±0.108°F (±0.06°C) or better and a resolution of 0.036°F (0.02°C), it supports a variety of RTD sensors with 100 Ω at 2 or 3 wires, such as the one offered by Dracal Technologies, allowing for great flexibility in use. Its compact USB key-shaped housing allows for easy integration in tight spaces, while its USB 2.0 communication ensures a fast and reliable connection to a computer. Its 18-bit ADC guarantees precise measurements, and its temperature range of -328 to 1472°F (-200°C to 800°C) makes it a versatile choice for various applications.
Like all Dracal measurement instruments, this device is compatible with free software tools, making it an essential component of a DAQ solution. For those who wish to integrate the RTD200 into their system, there are two options available: command line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.
Features
Free Data Logging software:
Applications
| Operating Range | -328 to 1472°F (-200 to 800°C), probe dependent |
| ADC Resolution | 18 bits |
| Temperature Resolution | Typical: 0.036°F (0.02°C) |
| Accuracy | At 77°F (25°C), typical: ±0.108°F (0.06°C), excluding probe |
| Response Time | t63%: Probe dependent |
| Sensing Element Type | RTD: 100 Ω |
| Samples Rate | Up to 3 SPS: 250 ms |
| Factory Calibrated | Yes, individually |
| Calibration Value Point | 0.00°F (0.00°C) |
| Voltage | Powered through a USB port, 5 V |
| Current Consumption | At 5V: 19 mA, approximately |
| Colour | Cyan |
| Operational | Temperature: -4 to 158°F (-20 to 70°C) Relative humidity: 10 to 90 % RH, non-condensing |
| Material | ABS plastic |
| IP Rating | 51 |
| Connection | Polarized 3-pin standard miniature receptacle |
| Long-Term Stability | Yes |
| Temperature Compensated | Yes |
| Weight | 0.88 oz (25 g), without USB cable |
