Digi-Sense WD-20250-15 Professional CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration Certificate

Model: WD-20250-15 | UPC: 846699100184

Downloads: datasheet manual

Digi-Sense WD-20250-15 Professional CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration Certificate

Model: WD-20250-15 | UPC: 846699100184

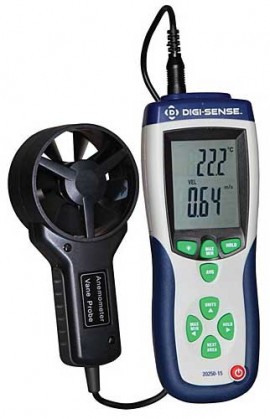

This vane thermoanemometer is designed for precision air velocity and airflow measurements in 7 user-selectable units of measurement (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The large dual display allows you to simultaneously read air velocity or airflow and air temperature.

Sale Price	$193.75 USD
Regular Price	$250.00 USD
Availability	1 Week
Quantity	Quantity

Digi-Sense WD-20250-15 Offers

Features

Save time by storing up to 16 commonly used vent area sizes into memory (8 CFM and 8 CMM)
Reliable measurements
Pre-calibrated to NIST-traceable standards
User-select units of measure (ft/min, m/s, mph, km/h, knots, CFM, and CMM) eliminates need for conversion
Measure air velocities up to 5,900ft/min (30m/s) to cover a broad range of applications
Measure air flow up to 999,900CFM (999,900CMM)
Auto power-off extends battery life
Fits comfortably in your hand
Large dual-function 4-digit LCD with backlight capability for easy reading

Applications

Analyze, balance, and troubleshoot ventilation performance in protected storage areas, home, and office environments
Assess cooling air volume in temperature-controlled processing environments
Measure outdoor wind velocities

Digi-Sense WD-20250-15 Specifications

Range	Air velocity: 0.4 to 30m/s, 80 to 5,900ft/min, 1.4 to 108km/hr, 0.9 to 67mph, 0.8 to 58knots Air flow: 0 to 999,900CFM, 0 to 999,900CMM
Resolution	Air velocity: 0.01m/s, 1ft/min, 0.1km/hr, 0.1mph, 0.1knots Air flow: 0.001 to 100CFM, 0.001 to 100CMM
Accuracy	Air velocity: ±(3% + 0.2m/s), ±(3% + 40ft/min), ±(3% + 0.8km/hr), ±(3% + 0.4mph), ±(3% + 0.4knots)
Temperature Range	32 to 122°F (0 to 50°C)
Temperature Resolution	0.1°F (0.1°C)
Temperature Accuracy	±4°F (±2°C)
Display	LCD, backlit
Operating Modes	Min/Max/Avg, data hold, record
Cable Length	3.9ft (1.19m)
Warranty	2 years
Dimensions	Meter: 8 x 3 x 2in (20.32 x 7.62 x 5.08cm) Vane sensor head: 2.75in (6.99cm) diameter

Click here for complete specifications on the Digi-Sense WD-20250-15

What's included with the Digi-Sense WD-20250-15

CFM/CMM Vane Thermoanemometer
NIST-Traceable Calibration Report with Data
Vane Probe Sensor with 3.9ft (1.2m) Cable
3 x AAA Batteries

datasheet for the Digi-Sense WD-20250-15 Professional CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration Certificate manual for the Digi-Sense WD-20250-15 Professional CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration Certificate
