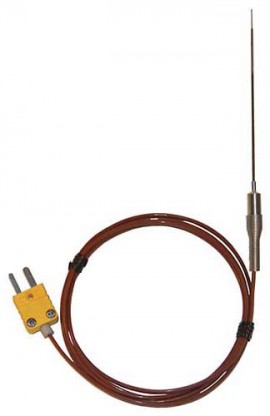

Digi-Sense WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe, Type K

Model: WD-08117-60

Digi-Sense WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe, Type K

Model: WD-08117-60

This low-mass straight-shaft surface thermocouple probe attaches directly to your meter or probe handles and is ideal for checking food temperature. The probe's handles feature a strain-relief spring that protects the cable connection against damage due to repeated flexing and tugging.

This low-mass straight-shaft surface thermocouple probe attaches directly to your meter or probe handles and is ideal for checking food temperature. The probe's handles feature a strain-relief spring that protects the cable connection against damage due to repeated flexing and tugging.

Sale Price $58.67 USD
Regular Price $75.70 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe

Digi-Sense WD-08117-60 Offers

Features

  • Probe comes with a color-coded ANSI mini connector: type K-yellow
  • Probe handle features a strain-relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • 4in (10.16cm) micro-probe tip with 316SS sheath
  • 5.5in (13.97cm) SS handle
  • No handle
  • Range: -310 to 750°F (-190 to 399°C)
  • Grounded junction
  • 25-second response time

Applications

  • Ideal for checking food temperature

Digi-Sense WD-08117-60 Specifications

Probe Type K
Temperature Range -418 to 450°F (-150 to 232°C)
Temperature Accuracy ±3°F (1.1°C) or ±0.4% reading above 212°F (100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238°F (-51 to -150°C), whichever is greater
Probe Length 4 x 0.063in (10.16 x 0.16cm)
Sheath Material 316 Stainless Steel
Dimensions Sheath: 4in length x 0.063in (10.16 x 0.16cm) diameter
Tip: 0.02in (0.05cm) diameter
Handle: 1.5in (3.81cm) length

What's included with the Digi-Sense WD-08117-60

  • Digi-Sense WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe, Type K

Digi-Sense WD-08117-60 Offers

Features

  • Probe comes with a color-coded ANSI mini connector: type K-yellow
  • Probe handle features a strain-relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • 4in (10.16cm) micro-probe tip with 316SS sheath
  • 5.5in (13.97cm) SS handle
  • No handle
  • Range: -310 to 750°F (-190 to 399°C)
  • Grounded junction
  • 25-second response time

Applications

  • Ideal for checking food temperature

Digi-Sense WD-08117-60 Specifications

Probe Type K
Temperature Range -418 to 450°F (-150 to 232°C)
Temperature Accuracy ±3°F (1.1°C) or ±0.4% reading above 212°F (100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238°F (-51 to -150°C), whichever is greater
Probe Length 4 x 0.063in (10.16 x 0.16cm)
Sheath Material 316 Stainless Steel
Dimensions Sheath: 4in length x 0.063in (10.16 x 0.16cm) diameter
Tip: 0.02in (0.05cm) diameter
Handle: 1.5in (3.81cm) length

What's included with the Digi-Sense WD-08117-60

  • Digi-Sense WD-08117-60 Low-Mass Straight-Shaft Surface Thermocouple Probe, Type K
