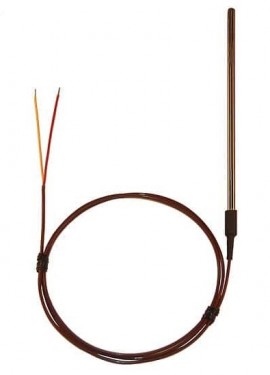

Features a response time of 2 to 4 seconds or greater, the type K hollow thermocouple probe comes with a yellow ANSI mini connector. It is designed to be more compact with a sheath length of 12" and a sheath diameter of 0.06". It also comes with a 316 stainless steel sheath.
Features a response time of 2 to 4 seconds or greater, the type K hollow thermocouple probe comes with a yellow ANSI mini connector. It is designed to be more compact with a sheath length of 12" and a sheath diameter of 0.06". It also comes with a 316 stainless steel sheath.
| Length (in) | 12 |
| Probe Type | K |
| Temperature Range | -418 to 425°F (-250 to 218°C) |
| Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238°F (-51 to -150°C), whichever is greater |
| Junction | Ungrounded |
| Connector Type | Stripped Leads |
| Sheath Length (in) | 12 |
| Sheath Diameter (in) | 0.06 |
| Cable Wire Gauge (Ga) | 24 |
| Ext (in) | 36 |
