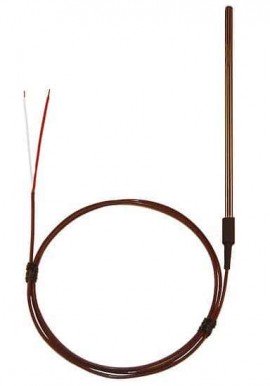

The type J economic hollow thermocouple probe comes with a color-coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple and is designed to be more compact with a length of 12".
The type J economic hollow thermocouple probe comes with a color-coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple and is designed to be more compact with a length of 12".
| Length | 12" |
| Temperature Range | 32 to 425°F (0 to 218°C) |
| Temperature Accuracy | ±4°F (2.2°C) or ±0.4% reading above 32°F (0°C); ±4% of reading below 32°F (0°C) |
| Junction | Grounded |
| Connector Type | Stripped Leads |
| Sheath Material | 316 Stainless Steel |
| Sheath Length | 12" |
| Sheath Diameter | 0.1875" |
| Cable Wire Gauge (Ga) | 24 |
| Response Time | 2 to 4 seconds or greater |
