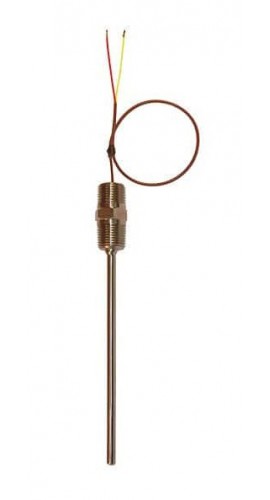

Featuring a 6" sheath length, 0.25" sheath diameter, and 12" extension, the Inconel type K spring loaded ind thermocouple probe also have a 316 stainless steel sheath, installed with current housing, and spring-loaded to be bottomed out into a thermowell. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of -250 to 1650°F.
Featuring a 6" sheath length, 0.25" sheath diameter, and 12" extension, the Inconel type K spring loaded ind thermocouple probe also have a 316 stainless steel sheath, installed with current housing, and spring-loaded to be bottomed out into a thermowell. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of -250 to 1650°F.
| Length | 6" |
| Probe Type | K |
| Min Temperature (°F) | -250 |
| Max Temperature (°F) | 1650 |
| Min Temperature (°C) | -150 |
| Max Temperature (°C) | 1100 |
| Junction | Ungrounded |
| Connector Type | Stripped wire; ½" NPT(M) x ½" NPT(M) |
| Sheath Material | Inconel® |
| Sheath Length (in) | 6 |
| Sheath Diameter (in) | 0.25 |
