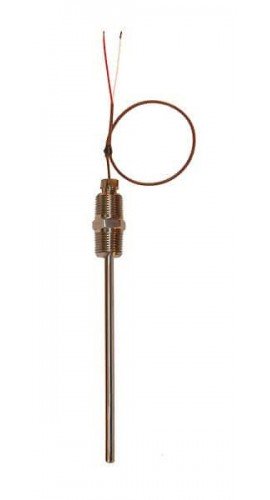

Coming with a 6" sheath length, 0.25" sheath diameter, and 12" extension, the type J ind thermocouple probe also have a 316 stainless steel sheath and is designed to replace broken industrials probes. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of 32 to 1400°F.
Coming with a 6" sheath length, 0.25" sheath diameter, and 12" extension, the type J ind thermocouple probe also have a 316 stainless steel sheath and is designed to replace broken industrials probes. The probes are welded and sealed for direct insertion with ½" NPT insertion threads and has a temperature range of 32 to 1400°F.
| Length | 6" |
| Probe Type | J |
| Min Temperature (°F) | 32 |
| Max Temperature (°F) | 1400 |
| Min Temperature (°C) | 0 |
| Max Temperature (°C) | 760 |
| Junction | Ungrounded |
| Connector Type | Stripped wire; ½" NPT(M) x ½" NPT(M) |
| Sheath Material | 316 Stainless Steel |
| Sheath Length (in) | 6 |
| Sheath Diameter (in) | 0.25 |
