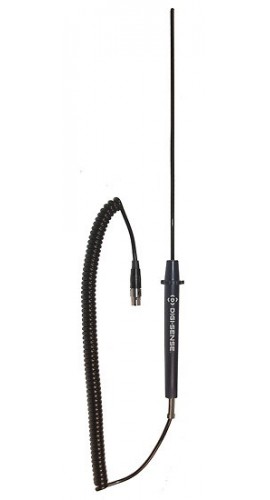

Digi-Sense 08117-87 PFA-Coated RTD Probe, 100 Ω, 10"

Model: 08117-87 | Order No: WD-08117-87

Digi-Sense 08117-87 PFA-Coated RTD Probe, 100 &Omega;, 10"-

Downloads: datasheet

Digi-Sense 08117-87 PFA-Coated RTD Probe, 100 Ω, 10"

Model: 08117-87 | Order No: WD-08117-87

Equipped with a PFA coating, this RTD probe is designed to hold up strong in harsh conditions. It has a lightweight, compact design.

Sale Price	$179.41 USD
Regular Price	$231.50 USD
Availability	6 to 7 Weeks
Quantity	Quantity

Digi-Sense 08117-87 Offers

Compact and lightweight, the Digi-Sense 08117-87 PFA-Coated RTD Probe is ideal for measuring temperatures around the lab. It features a PFA coating to ensure maximum resistance to chemicals, impacts and temperature.

Features

Compact probe designed for accurate, easy temperature monitoring
PFA-coated, 316 stainless-steel sheath offers excellent chemical and temperature resistance
Handle is made from lightweight, durable ABS plastic
Time constant: 1 to 3 seconds or greater
Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751)
Resistance at ice point (0°C) is 100 Ω
Note: Time constant is the time required to reach 63.2% of the new reading; to determine how long it will take to reach 99% of the new reading multiply the time constant by 5
Note: Temperature range is for the probe tip only; ABS handles are rated to 220°F (104°C)

Digi-Sense 08117-87 Specifications

Probe	RTD
Temperature Range	-58 to 400°F (-50 to 204°C)
Temperature Accuracy	±1.1°C, ±0.12% of reading below 300°F (149°C), ±0.35% of reading above 300°F (149 °C)
Connector	Digi-Sense 3-pin
Sheath Length	10" (25.4 cm)
Handle Length	5.5" (13.97 cm)
Cable Type	Coiled
Product Length	5' (1.5 m)

Click here for complete specifications on the Digi-Sense 08117-87

What's included with the Digi-Sense 08117-87

Digi-Sense 08117-87 PFA-Coated RTD Probe, 100 Ω, 10"

datasheet for the Digi-Sense 08117-87 PFA-Coated RTD Probe, 100 Ω, 10"
