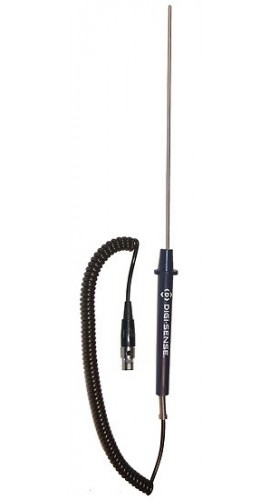

Digi-Sense 08117-74 Bendable RTD Probe, 100 Ω, 18"

Model: 08117-74 | Order No: WD-08117-74

This bendable RTD probe features a stainless-steel sheath for durability. It comes in a compact design.

Sale Price	$182.13 USD
Regular Price	$235.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Digi-Sense 08117-74 Offers

The Digi-Sense 08117-74 Bendable RTD Probe is more compact and flexible than the average RTD probe, but is still just as accurate and reliable. It boasts a 3-pin design and is made with an ABS plastic handle to keep it lightweight and easy to use.

Features

Supplies accurate, consistent results
Bendable, compact design is easy to use
Time constant is 1 to 3 seconds or greater
Resistance at ice point is 100 Ω
Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751)
Built with a 304 stainless-steel sheath and a lightweight ABS plastic handle
Note: Time constant is the time required to reach 63.2% of the new reading; to determine how long it will take to reach 99% of the new reading multiply the time constant by 5
Note: Temperature range is for the probe tip only; ABS handles are rated to 220°F (104°C)

Digi-Sense 08117-74 Specifications

Probe	RTD
Temperature Range	-58 to 932°F (-50 to 500°C)
Temperature Accuracy	±1.1°C, ±0.12% of reading
Connector	3-pin
Sheath Material	304 stainless steel
Sheath Length	18" (45.72 cm)
Handle Material	ABS
Handle Length	5.5" (13.97 cm)
Cable Type	Coiled
Cable Length	5' (1.5 m)

Click here for complete specifications on the Digi-Sense 08117-74

What's included with the Digi-Sense 08117-74

Digi-Sense 08117-74 Bendable RTD Probe, 100 Ω, 18"

datasheet for the Digi-Sense 08117-74 Bendable RTD Probe, 100 Ω, 18"
