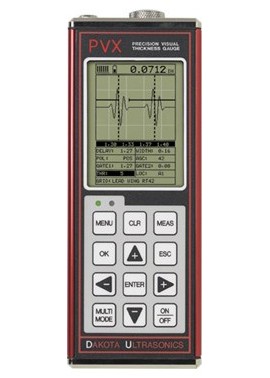

Dakota PVX A-scan Thickness Gauge with Datalogger

Model: PVX | Order No: Z-157-0001

This visual precision A-scan ultrasonic thickness gauge has alpha-numeric data logger for increased versatility for those custom reporting needs. With high speed scan feature, provides faster inspection process by making 32 measurements per second.

This visual precision A-scan ultrasonic thickness gauge has alpha-numeric data logger for increased versatility for those custom reporting needs. With high speed scan feature, provides faster inspection process by making 32 measurements per second.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Ultrasonic Thickness Gauges category for similar products.

Or let's do a search and help you find what you need:

Recommended Accessories

Dakota N-104-0000 4' Transducer Cable, Single Lemo 00 to Lemo 00-

Dakota N-104-0000 4' Transducer Cable, Single Lemo 00 to Lemo 00

N-104-0000

Dakota T-402-5507 Single Element Delay Line Transducer, 15 MHz-

Dakota T-402-5507 Single Element Delay Line Transducer, 15 MHz

T-402-5507

Dakota X-132-0000 Delay Line Tip, Conical, 1/8 x 3/8"-

Dakota X-132-0000 Delay Line Tip, Conical, 1/8 x 3/8"

X-132-0000

Dakota X-532-0000 Delay Line Tip, Conical, 3/16 x 3/8"-

Dakota X-532-0000 Delay Line Tip, Conical, 3/16 x 3/8"

X-532-0000

Dakota X-533-0000 Delay Line Tip, Graphite, 3/16 x 3/8"-

Dakota X-533-0000 Delay Line Tip, Graphite, 3/16 x 3/8"

X-533-0000

Dakota X-633-0000 Delay Line Tip, Graphite, 1/4 x 3/8"-

Dakota X-633-0000 Delay Line Tip, Graphite, 1/4 x 3/8"

X-633-0000

Dakota Ultrasonics PVX Offers

PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs. The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned. Visual and audible alarm with hi and lo limit settings for specific application tolerances. Auto find features locates the detection points and adjusts the display settings to bring the waveform into view. PVX comes complete with our Windows® PC or MAC OSX software for transferring data to and from a PC.

Features

  • Adjustable square wave pulser provides PVX the flexibility necessary for both high resolution and penetration requirements
  • Selectable viewing options provide the user with additional flexibility during operation: (RF waveform, ±Rectified waveform, and Large Digits with Scan Bar
  • Time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material
  • Adjustable resolution settings add to the PVX's flexibilty
  • Ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications)
  • Hardware AGC gain control for multiple echo and thru-paint measurement
  • Multiple calibration options: One Point, Two Point, or selection from a Material List
  • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications

Dakota Ultrasonics PVX Specifications

Operating Temperature -14 to 140°F (-10 to 60°C)
Case Materials Extruded Aluminum Body
Nickel Plated Aluminum End Caps (Gasket Sealed)
Data Output Bi-Directional RS232 Serial Port
Windows® PC Interface Software
Display 1/8" VGA Grayscale Display (240 x 160 Pixels)
Viewable Area: 2.4 x 1.8" (62 x 45.7 mm)
Power Source 3 x 1.5V Alkaline Batteries or 1.2V NiCad AA Cells
Resolution ±0.001" (0.01 mm) or ±0.0001" (0.001mm) (User Selectable)
Velocity Range 0.0492 to 0.3936 in/ms (1250 to 9999 m/s)
Units English & Metric
Data Logger 12,000 Readings and Waveforms (Alpha Numeric Storage)
Dimensions 2.5 x 6.5 x 1.24" (63.5 x 165 x 31.5 mm)
Weight 13.5 ounces (with batteries)
Click here for complete specifications on the Dakota Ultrasonics PVX

What's included with the Dakota Ultrasonics PVX

  • Thickness Gauge
  • NIST-Traceable Calibration Certificate
  • Transducer
  • 4 oz Bottle of Couplant
  • 2 x AA Batteries
  • Data Transfer Software
  • Carrying Case
  • Cable
  • Operation Manual
datasheet for the Dakota PVX A-scan Thickness Gauge with Datalogger manual for the Dakota PVX A-scan Thickness Gauge with Datalogger
