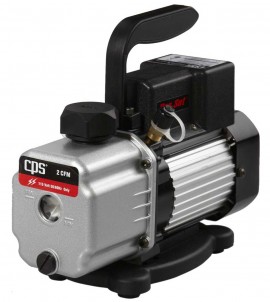

CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz)

Model: VPC2DU

Downloads: datasheet manual

CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz)

Model: VPC2DU

This innovative 2CFM, 2-stage vacuum unit is factory tested and certified to achieve an ultimate vacuum rating as low as 15 microns, and it weighs only 12.1lbs (5.5 kg).

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

CPS VPC2SU Pro-Set Compact Single-Stage Vacuum, 2CFM, 115V (50/60Hz)

Model: VPC2SU

This innovative 2CFM, single-stage vacuum unit is factory tested and certified to achieve an ultimate vacuum rating as low as 100 microns and weighs only 9.3lbs (4.2 kg).

Learn More

CPS VPC4SU Pro-Set Compact Vacuum Pump, 4CFM, 115V (50/60Hz)

Model: VPC4SU

This innovative 4CFM, single-stage vacuum unit is factory tested and certified to achieve an ultimate vacuum rating as low as 100 microns and weighs only 11lbs (5 kg).

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

CPS VPXOMP Exhaust Port Cap for 2 to 6CFM Models

VPXOMP

CPS VPOG6 Pro-Set Premium Vacuum Pump Oils, 1gal Bottles, 6-Pack

VPOG6

CPS VPOP12 Pro-Set Premium Vacuum Pump Oils, 1-Pint Bottles, 12-Pack

VPOP12

CPS VPOQ12 Pro-Set Premium Vacuum Pump Oils, 1-Quart Bottles, 12-Pack

VPOQ12

CPS VPC2DU Offers

Innovative compact and lightweight design weighs only 12.1lb (5.5kg).

Features

Exceptional ultimate vacuum rating as low as 15 microns
Advanced air-cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for clean, safe job environment
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
Solid rubber base provides extreme shock resistance
Sure grip handle ergonomically designed for superior comfort and portability
Extremely compact and portable design

CPS VPC2DU Specifications

Power:	115V 50/60Hz USA Plug
Stages:	2
Motor Size (HP) RPM @ 50/60Hz:	1/4HP 2880/3440RPM
Operating Temperature Range:	32 to 125°F (0 to 52°C)
Ultimate Vacuum:	as low as 15 Microns
Oil Capacity:	9oz (250ml)
Overload Protection:	Motor thermally protected
Control System:	On-Off power switch
Free Air Displacement:	2CFM @ 60hz, 48l/m @ 50Hz
Intake Fittings:	1/4in SAE and 1/2in ACME
Gas Ballast Valve	No
Dimensions:	11.3 x 4.5 x 8in (28.7 x 11.43 x 20.32cm)
Weight:	12.1lb (5.5kg)

Click here for complete specifications on the CPS VPC2DU

What's included with the CPS VPC2DU

CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz)

datasheet for the CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz) manual for the CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz)

Click on a category to view a selection of compatible accessories with the CPS VPC2DU Pro-Set Compact Dual-Stage Vacuum, 2CFM, 115V (50/60Hz).

Caps

CPS VPXOMP Exhaust Port Cap for 2 to 6CFM Models VPXOMP

This oil mist preventer exhaust port cap is made to work with most 2 to 6CFM models.

Oil

CPS VPOG6 Pro-Set Premium Vacuum Pump Oils, 1gal Bottles, 6-Pack VPOG6

This 6-pack of extremely high-quality, severely hydrotreated vacuum pump oil is compatible with pumps made by most manufacturers.

CPS VPOP12 Pro-Set Premium Vacuum Pump Oils, 1-Pint Bottles, 12-Pack VPOP12

This 12-pack of extremely high-quality, severely hydrotreated vacuum pump oil is compatible with pumps made by most manufacturers.

CPS VPOQ12 Pro-Set Premium Vacuum Pump Oils, 1-Quart Bottles, 12-Pack VPOQ12
