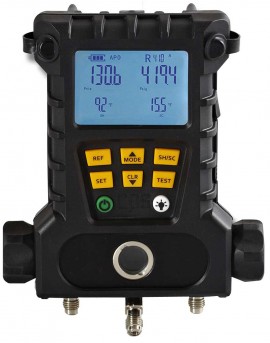

CPS MD50 BlackMax 2-Valve Digital Manifold

Model: MD50

CPS MD50 BlackMax 2-Valve Digital Manifold-

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

More CPS Products

Ask an Expert

CPS MD50 BlackMax 2-Valve Digital Manifold

Model: MD50

This 2-valve digital manifold features 1-touch access to your 5 favorite refrigerants with vacuum hold and pressure hold test functions.

This 2-valve digital manifold features 1-touch access to your 5 favorite refrigerants with vacuum hold and pressure hold test functions.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

CPS MD100W BlackMax 4-Valve Wireless Digital Manifold-

CPS MD100W BlackMax 4-Valve Wireless Digital Manifold

Model: MD100W

This 4-valve digital manifold can let you perform select manifold functions from up to 300ft (91.44m) away and provides additional features not available with standard digital models. This can also be used as conventional manifolds or connected wirelessly with most iOS or Android mobile devices using the Manifold Link app.

Learn More

CPS MD50 Offers

This 2-valve wireless digital manifold has advanced sight glass design.

Features

  • US Patent No. 9,043,161
  • For pressure, temperature and vacuum
  • Water-resistant, high-strength, glass-filled nylon housing
  • Precision machined anodized aluminum manifold body
  • Proprietary Vortech® valve systems (certified to 10 microns)
  • High-impact polycarbonate LCD window
  • Advanced sight glass design
  • One key ON/OFF and function select
  • Supports 105 of the most common refrigerants
  • Compatible with R744 subcritical CO2 refrigerants
  • One-touch access to your 5 favorite refrigerants
  • 25 h of continuous use with full backlight illumination
  • 2 Pressures, 2 temperatures and vacuum (using MDXVG accessory)
  • Vacuum hold and pressure hold test functions
  • HI and LO pressures, superheat and subcooling
  • HI and LO pressures, T1 and T2
  • HI and LO pressures, saturation T1 and saturation T2
  • HI and LO pressures, displays T1, T2 and Delta T

CPS MD50 Specifications

High Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Low Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Pressure Reading Accuracy ±1% of reading or ±0.5 psig (±0.05 bar)
Pressure Reading Resolution 0.5 psig (0.05 bar)
High and Low Side Burst Pressure 1500 psig (103.4 bar)
High Side Temperature Range -58 to 302°F (-50 to 150°C)
Low Side Temperature Range -58 to 302°F (-50 to 150°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
Vacuum Indication Accuracy ±10 microns (requires MDXVG accessory)
SH, SC and Saturation Temperature Accuracy ±0.5°F (±0.3°C)
Instrument Working Temperature -4 to 122°F (-20 to 50°)
Instrument Working RH Range 0 to 100% non-condensing
APO (Automatic Power Off) 10 mins (Can be disabled by user)
Dimensions 8.1 x 2.5 x 7" (20.5 x 6.4 x 17.8 cm) (L x H x W)
Weight 3.0 lbs (1.4 kg)
Display Life Using 4 Industrial Alkaline AA Batteries (included) Backlight Full ON: 25+ hrs. Continuous Duty
Display Life Using 4 Industrial Alkaline AA Batteries (included) Backlight Full ON: 60+ hrs. Continuous Duty
Display Life Using 4 Rechargeable NiMH AA Batteries (not included) Backlight Full ON: 20+ hrs. Continuous Duty from Full Charge
Display Life Using 4 Rechargeable NiMH AA Batteries (not included) Backlight Full OFF: 50+ hrs. Continuous Duty from Full Charge
Click here for complete specifications on the CPS MD50

What's included with the CPS MD50

  • Digital Manifold
  • Thermistor Sensor with 6' Leads (MDXCP) X 2
  • 4 x AA Industrial Batteries
  • User Manual
datasheet for the CPS MD50 BlackMax 2-Valve Digital Manifold manual for the CPS MD50 BlackMax 2-Valve Digital Manifold

CPS MD50 Offers

This 2-valve wireless digital manifold has advanced sight glass design.

Features

  • US Patent No. 9,043,161
  • For pressure, temperature and vacuum
  • Water-resistant, high-strength, glass-filled nylon housing
  • Precision machined anodized aluminum manifold body
  • Proprietary Vortech® valve systems (certified to 10 microns)
  • High-impact polycarbonate LCD window
  • Advanced sight glass design
  • One key ON/OFF and function select
  • Supports 105 of the most common refrigerants
  • Compatible with R744 subcritical CO2 refrigerants
  • One-touch access to your 5 favorite refrigerants
  • 25 h of continuous use with full backlight illumination
  • 2 Pressures, 2 temperatures and vacuum (using MDXVG accessory)
  • Vacuum hold and pressure hold test functions
  • HI and LO pressures, superheat and subcooling
  • HI and LO pressures, T1 and T2
  • HI and LO pressures, saturation T1 and saturation T2
  • HI and LO pressures, displays T1, T2 and Delta T
Show More...

CPS MD50 Specifications

High Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Low Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Pressure Reading Accuracy ±1% of reading or ±0.5 psig (±0.05 bar)
Pressure Reading Resolution 0.5 psig (0.05 bar)
High and Low Side Burst Pressure 1500 psig (103.4 bar)
High Side Temperature Range -58 to 302°F (-50 to 150°C)
Low Side Temperature Range -58 to 302°F (-50 to 150°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
Vacuum Indication Accuracy ±10 microns (requires MDXVG accessory)
SH, SC and Saturation Temperature Accuracy ±0.5°F (±0.3°C)
Instrument Working Temperature -4 to 122°F (-20 to 50°)
Instrument Working RH Range 0 to 100% non-condensing
APO (Automatic Power Off) 10 mins (Can be disabled by user)
Dimensions 8.1 x 2.5 x 7" (20.5 x 6.4 x 17.8 cm) (L x H x W)
Weight 3.0 lbs (1.4 kg)
Display Life Using 4 Industrial Alkaline AA Batteries (included) Backlight Full ON: 25+ hrs. Continuous Duty
Display Life Using 4 Industrial Alkaline AA Batteries (included) Backlight Full ON: 60+ hrs. Continuous Duty
Display Life Using 4 Rechargeable NiMH AA Batteries (not included) Backlight Full ON: 20+ hrs. Continuous Duty from Full Charge
Display Life Using 4 Rechargeable NiMH AA Batteries (not included) Backlight Full OFF: 50+ hrs. Continuous Duty from Full Charge
Click here for complete specifications on the CPS MD50

What's included with the CPS MD50

  • Digital Manifold
  • Thermistor Sensor with 6' Leads (MDXCP) X 2
  • 4 x AA Industrial Batteries
  • User Manual
datasheet for the CPS MD50 BlackMax 2-Valve Digital Manifold manual for the CPS MD50 BlackMax 2-Valve Digital Manifold
