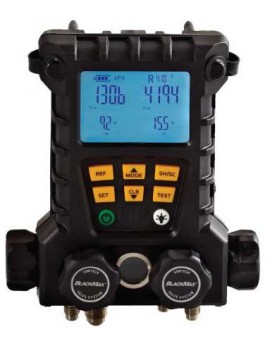

CPS MD100WVHE 4-Valve Wireless Digital Manifold with Clamp Probes, Vacuum Gauge

Downloads: datasheet manual

This 4-valve digital manifold has fast and convenient touch-screen control with a 5ft (150cm) hose set.

Can be used as conventional manifolds or connect wirelessly with any iOS or Android mobile device using the Manifold Link™ app.

Features

Connects with the CPS Link app
Perform and monitor full system measurements—in real time
Fast, convenient touch screen control
Perform select manifold functions without the need to physically touch the manifold
Data logging
Alternate views for smaller mobile devices
Color scheme change according to refrigerant
Real-time information displayed on screen
Perform multiple system tests
Pressure hold or vacuum hold tests can be viewed, saved, stored or emailed as a graph
Supports 105 of the most common refrigerants, with quick access to your favorite five
APP updates for new refrigerants
Change manifold units; (Pressure, Temperature, Vacuum)
Multi-language
Water-resistant, high-strength, glass-filled nylon housing
Precision machined anodized aluminum manifold body
Proprietary Vortech® valve systems (certified to 10 microns)
2 Pressures, 2 temperatures and vacuum (using MDXVG accessory)
Vacuum hold and pressure hold test functions
US Patent No. 9,043,161

App Features

Pressure Range	High side: -14.5 to 800.0 psig (-1.0 to 55 bar) Low side: -14.5 to 800.0 psig (-1.0 to 55 bar)
Pressure Reading	Accuracy: ±1% of readings (±0.5 psig or ±0.05 bar) Resolution: 0.5 psig (0.05 bar)
High and Low Side Burst Pressure	1500 psig (103.4 bar)
Temperature Range	High side: -58 to 302°F (-50 to 150°C) Low side: -58 to 302°F (-50 to 150°C)
Temperature Reading Accuracy	±0.36°F (±0.2°C)
Vacuum Indication Accuracy	±10 microns (requires MDXVG accessory)
SH, SC & Saturation Temperature Accuracy	±0.5°F (±0.3°C)
Instrument Working Temperature	-4 to 122°F (-20 to 50°C)
Communication Range (with CPS Link™)	Up to 300 ft (91.44 m) (Depends on device capabilities)
Instrument Working RH Range	0% to 100% non-condensing
APO (Automatic Power Off)	10 min (Can be disabled by user)
Display Life	4 x industrial alkaline AA batteries with backlight on: 25+ hrs continuous duty 4 x industrial alkaline AA batteries with backlight off: 60+ hrs continuous duty 4 x rechargeable NiHM AA batteries with backlight on: 20+ hrs continuous duty (not included) 4 x rechargeable NiHM AA batteries with backlight off: 50+ hrs continuous duty (not included)
Dimensions	8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm)
Weight	3.3 lbs (1.5kg)

datasheet for the CPS MD100WVHE 4-Valve Wireless Digital Manifold with Clamp Probes, Vacuum Gauge manual for the CPS MD100WVHE 4-Valve Wireless Digital Manifold with Clamp Probes, Vacuum Gauge
