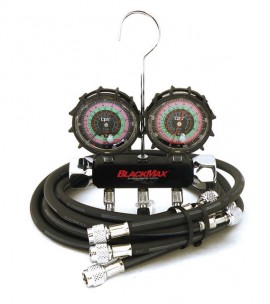

CPS MBH5P5Z BlackMax Manifold and Gauge Set, 2-valve, ¼" SAE fittings

Model: MBH5P5Z | UPC: 750377101588

$CPS MBH5P5Z BlackMax Manifold and Gauge Set, 2-valve, &frac14;&quot; SAE fittings-$

Downloads: datasheet

CPS MBH5P5Z BlackMax Manifold and Gauge Set, 2-valve, ¼" SAE fittings

Model: MBH5P5Z | UPC: 750377101588

Features a two-valve black anodized aircraft aluminum machined body that provides superior performance and full, unrestricted refrigerant flow and allows a light touch valve operation. The set comes with R134a, R22, R404a, R410a gauges, and 5' premium hoses.

Sale Price	$173.10 USD
Regular Price	$199.74 USD
Availability	4 to 5 Weeks5 to 6 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your MBH5P5Z BlackMax Manifold and Gauge Set

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1-2) for only $220.00 USD

Traceable Calibration Certificate for your MBH5P5Z BlackMax Manifold and Gauge Set

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1-2) for only $220.00 USD

CPS MBH5P5Z Offers

Features

Two valve black anodized aircraft aluminum machined body
Vortech™ deep vacuum valves^*
Triple Seal™ piston valves^*
2⅝" (68 mm) class 1.6 accuracy gauges built with internal silicon dampening cup for flutter-free operation
Nickel plated ¼" SAE fittings
Auxiliary center access port with Schrader valve^*
Protective gauge boots

^*Please note that ball valves are sold separately.

Applications

HVAC/R

CPS MBH5P5Z Specifications

Valves	2
Fittings	¼" SAE 45°
Refrigerants	R-22, R-134 A, R-404 A, and R-410 A
Gauge Size	2⅝"
Accuracy	Class 1.6
Scale	°F
Pressure	psi

Click here for complete specifications on the CPS MBH5P5Z

What's included with the CPS MBH5P5Z

Manifold
SAE Fittings
Premium Black and Chrome Hoses
Custom Tin Box
One-Year Warranty

datasheet for the CPS MBH5P5Z BlackMax Manifold and Gauge Set, 2-valve, ¼" SAE fittings

Description ➕➖

CPS MBH5P5Z Offers

Features

Two valve black anodized aircraft aluminum machined body
Vortech™ deep vacuum valves^*
Triple Seal™ piston valves^*
2⅝" (68 mm) class 1.6 accuracy gauges built with internal silicon dampening cup for flutter-free operation
Nickel plated ¼" SAE fittings
Auxiliary center access port with Schrader valve^*
Protective gauge boots

^*Please note that ball valves are sold separately.

Applications
