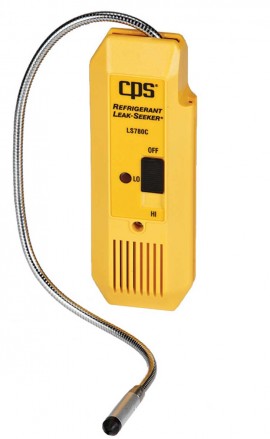

CPS LS780C Leak Seeker Refrigerant Leak Detector

Model: LS780C

Downloads:

CPS LS780C Leak Seeker Refrigerant Leak Detector

Model: LS780C

This refrigerant leak detector has a visual indication of the leak size, which is provided by a high-intensity LED varying in brightness with the concentration of the refrigerant.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

CPS LS790B Refrigerant Leak Detector

Model: LS790B

This refrigerant leak detector features a patented automatic calibration design, which eliminates the need for manual balance or tick rate adjustments, while the user-selectable 10 sensitivity ranges enable the unit to detect all non-combustible CFC, HCFC and HFC gases and blends.

Learn More

CPS LS780C Offers

This leak seeker refrigerant leak detector has a rugged, three position slide switch used to turn the instrument on and select either LO or HI sensitivity ranges.

Features

Combines microcomputer circuitry with field-proven Ion-Pump® sensor technology creating a highly sensitive and accurate electronic refrigerant leak detector
128 computer-generated tones and display alerts the user to varying halogen concentrations
Leak-Seekers are designed and manufactured in USA with U.S. and globally sourced components

CPS LS780C Specifications

Detector Type	Proprietary Ion-Pump sensor with built-in selective filter housing
Sensitivity	Better than 0.25oz (7g) / year leak rate of HFC
Sensitivity Selection	Manual
Refrigerant Sensitivity	All, including those with hydrocarbon components (CFC, HCFC, HFC, HFO, NH3, HC)
Visual Alarm	High intensity LED
Varies in Brightness	High intensity bar graph display
Flex Probe	18in (45.72cm) long metal flex probe
Operating Temperature	0 to 140°F (-18 to 60°C)
Controls	OFF, LO & HI sensitivity modes
Power (Battery Life)	(4) AA alkaline batteries (>40 hr continuous use)
Weight	18oz (500g)
Audible Alarms	128 computer generated tones to precisely guide user to the source of the leak
Low Battery Indication	Center LED above "*" lights during operation
Auto-Off	No
Sensor Life	Replace seasonally
Warranty	1 year

What's included with the CPS LS780C

CPS LS780C Leak Seeker Refrigerant Leak Detector

Description ➕➖

CPS LS780C Offers

This leak seeker refrigerant leak detector has a rugged, three position slide switch used to turn the instrument on and select either LO or HI sensitivity ranges.

Features

Combines microcomputer circuitry with field-proven Ion-Pump® sensor technology creating a highly sensitive and accurate electronic refrigerant leak detector
128 computer-generated tones and display alerts the user to varying halogen concentrations
Leak-Seekers are designed and manufactured in USA with U.S. and globally sourced components

Specifications ➕➖

CPS LS780C Specifications

Detector Type	Proprietary Ion-Pump sensor with built-in selective filter housing
Sensitivity	Better than 0.25oz (7g) / year leak rate of HFC
Sensitivity Selection	Manual
Refrigerant Sensitivity	All, including those with hydrocarbon components (CFC, HCFC, HFC, HFO, NH3, HC)
Visual Alarm	High intensity LED
Varies in Brightness	High intensity bar graph display
Flex Probe	18in (45.72cm) long metal flex probe
Operating Temperature	0 to 140°F (-18 to 60°C)
Controls	OFF, LO & HI sensitivity modes
Power (Battery Life)	(4) AA alkaline batteries (>40 hr continuous use)
Weight	18oz (500g)
Audible Alarms	128 computer generated tones to precisely guide user to the source of the leak
Low Battery Indication	Center LED above "*" lights during operation
Auto-Off	No
Sensor Life	Replace seasonally
Warranty	1 year

Included ➕➖

What's included with the CPS LS780C

CPS LS780C Leak Seeker Refrigerant Leak Detector
