This product is ideal for a wide range of force testing applications. Gauges can be mounted to a test stand for ever greater control and consistent results in repetitive testing applications. A mechanical overload feature protects the gauge from damage.
This product is ideal for a wide range of force testing applications. Gauges can be mounted to a test stand for ever greater control and consistent results in repetitive testing applications. A mechanical overload feature protects the gauge from damage.

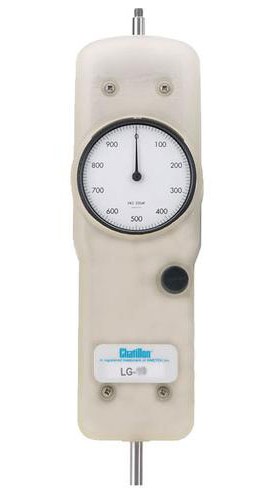

The LG Series is an excellent solution for tensile or compression testing. These mechanical force gauges fits naturally in the hand for a comfortable and firm grip, even at maximum loads.
The Chatillon LG Series is ideal for a wide range of force testing applications.
Simple & Precise
The LG Series features a larger, 2.25-inch dial for improved resolution and readability, a peak hold button, ergonomic shape and improved accuracy of ±0.5% of full scale.
Durability
The LG gauge is an excellent, economical solution for tensile or compression testing. The durable, plastic housing fits naturally in the hand for a comfortable and firm grip even at maximum loads. Gauges can be mounted to a test stand for even greater control and consistent results in repetitive testing applications.
Classic easy-to-read scale
Easy to read concentric dial measures clockwise only. Dial rotates 360-degrees for taring. A peak hold button captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in lbf, kgf or N units of measure.
| Accuracy | ±0.5% of Full Scale |
| Overload Capacity | 110% of Rated Capacity |
| Maximum Overload | 150% of Rated Capacity |
| Tare Capacity | 10% of Rated Capacity |
| Dial Resolution | 0.5% of Full Scale |
| Deflection (Full Scale) | 0.394 inches (10 mm) |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 1.5 lbs (0.67 kg) |
| Shipping Weight | 3.5 lbs (1.59 kg) |
| Accuracy | ±0.5% of Full Scale |
| Overload Capacity | 110% of Rated Capacity |
| Maximum Overload | 150% of Rated Capacity |
| Tare Capacity | 10% of Rated Capacity |
| Dial Resolution | 0.5% of Full Scale |
| Deflection (Full Scale) | 0.394 inches (10 mm) |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 1.5 lbs (0.67 kg) |
| Shipping Weight | 3.5 lbs (1.59 kg) |
