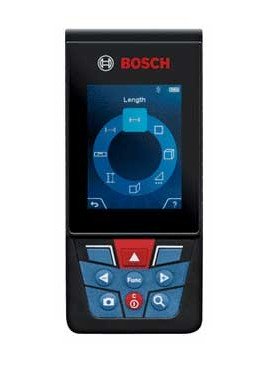

Measure up to 400' (121.92 m) with this outdoor connected lithium-ion laser measure that features an adjustable zoom camera for locating the laser spot in bright conditions. In addition, determine the pitch angle with its built-in inclinometer that indicates when the tool is level.
Measure up to 400' (121.92 m) with this outdoor connected lithium-ion laser measure that features an adjustable zoom camera for locating the laser spot in bright conditions. In addition, determine the pitch angle with its built-in inclinometer that indicates when the tool is level.
Store up to 600 images and view the last 50 measurements with this outdoor connected lithium-ion laser that features an easy-to-read backlit color display, reinforced screen glass, an easy-to-use display guide, and 11 measuring functions (including default real-time measuring). In addition, this laser provides default real-time length, length, area, volume, and indirect measuring functions.
Features
Applications
| Measuring Range | Typical: 3" to 400' (0.08 to 122 m) Typical unfavourable conditions: 196' (60 m) |
| Measuring Accuracy | Typical: ±1⁄16" (±1.5 mm) Typical unfavorable conditions: ±1⁄10" (±3 mm) |
| Lowest Indication Unit | 1⁄32" (0.5 mm) |
| Indirect Distance Measurement and Vial | Measuring range: 0 to 360° (4 x 90°) |
| Gradiant Measurement | Measuring range: 0 to 360° (4 x 90°) Measuring accuracy (typical): ±0.2° Lowest indication unit: 0.1° |
| Temperature | Operating: 14 to 113°F (-10 to 45°C) Allowable charging temperature range: 41 to 104°F (5 to 40°C) Storage: -4 to 158°F (-20 to 70°C) |
| Relative Air Humidity (Maximum) | 0.9 |
| Laser | Class: 2 Type: 650 nm, <1mW |
| Laser Beam Diameter at 77°F (25°C) | At 32' (10 m) distance, approximately: 0.35" (9 mm) At 328' (100 m) distance, approximately: 3.5" (90 mm) |
| Automatic Switch-Off After Approximately | Laser: 20 seconds Measuring tool: Adjustable |
| Bluetooth | Bluetooth smart (4.1 low-energy) |
| Operating Frequency Band | 2402 to 2480 MHz |
| Maximum Transmission Power | 8 mW |
| Micro USB Cable | USB 2.0 Charging voltage: 5 V Charging current: 1000 mA |
| Degree of Protection | IP54 (Dust and splash water protected) |
| Battery | Li-ion Rated voltage: 3.6 V Capacity: 3120 mAh Number of battery cells: 1 |
| Battery Charger | Charging time: Approximately 5.5 hours Output voltage: 5 V Charging current: 1000 mA |
| Dimensions | 5.5 (6.9) x 2.5 x 1.1" (142 (176) x 64 x 28 mm) |
| Weight | 0.46 lbs (0.21 kg) |
