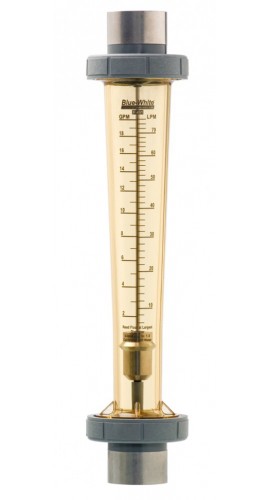

Blue-White F-451002LHKN Flow Meter, 1", in-line, 2.0-20 Gpm Water

Model: F-451002LHKN

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

More Blue-White Products

Ask an Expert

Blue-White F-451002LHKN Flow Meter, 1", in-line, 2.0-20 Gpm Water

Model: F-451002LHKN

Compact size for tight installation. 2.0 to 20 GPM range, 7.5 to 75 LPM range.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Blue-White F-451002LHN Flow Meter, 1", in-line, 2.0-20 Gpm Water

Model: F-451002LHN

Equipped with half union adapter connections which greatly facilitate both installation and maintenance. One-piece meter body of heat and chemical resistant Polysulfone. 14-1/2" long.

Learn More

Blue-White F-451002LHKN Offers

Features

One-piece meter body of heat and chemical resistant Polysulfone
Stanless steel float guide
1" FPT Polysulfone adapters
Viton O-ring seals
Floats of Hastelloy

Blue-White F-451002LHKN Specifications

Maximum Working Pressure	150 psig (10.3 bar) @ 7
Maximum Fluid Temperature	212°F (100°C) @ 0 PSI
Full Scale Accuracy	±3%
Meter Body Material	Polysulfone
Adapter Material	Polysulfone
Union Nuts	Glass Fiber Reinforced Nylon
Guide Rod Material	316 SS or Hastelloy C-276
O-Ring Material	Viton Options: EPDM
Maximum Pressure Drop	2 psi
Weight	3 lbs (1.36 kg)

Click here for complete specifications on the Blue-White F-451002LHKN

What's included with the Blue-White F-451002LHKN

Blue-White F-451002LHKN Flow Meter, 1", in-line, 2.0-20 Gpm Water

datasheet for the Blue-White F-451002LHKN Flow Meter, 1", in-line, 2.0-20 Gpm Water manual for the Blue-White F-451002LHKN Flow Meter, 1", in-line, 2.0-20 Gpm Water
