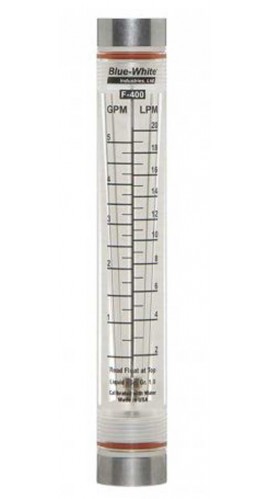

With a liquid flow rate of 0.5 to 5GPM (2 to 20LPM) and a hastelloy guide rod, this acrylic flowmeter features 1/2in female NPT connections.
With a liquid flow rate of 0.5 to 5GPM (2 to 20LPM) and a hastelloy guide rod, this acrylic flowmeter features 1/2in female NPT connections.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
This acrylic flowmeter features a white or yellow back reflector for easy reading.
Features
| Flow Range (GPM) | 0.5 to 5.0 |
| Flow Range (LPM) | 2.0 to 20 |
| Pipe Size (Inch) | 1/2, F/NPT |
| Float Material | Hastelloy |
| Meter Body | Cast Acrylic Rod |
| Adapter Material | Polypropylene |
| O-ring Seals | Viton (Optional EP) |
| Guide Rod | Hastelloy |
| Max. Working Pressure | 150psi (10.3 bar) @ 70°F (21°C) |
| Max. Fluid Temperature | 150°F (65°C) @ 0psig |
| Full Scale Accuracy | ±5% |
| Calibration Fluid | Water, specific gravity 1.0 |
| Scale Length | 4in (10.16cm) |
| Environment | Acceptable for direct sunlight exposure |
| Maximum Pressure Drop (PSI) | 2 |
| Width | 1.26in (32mm) |
| Height | 1.26in (32mm) |
| Length | 8.19in (208mm) |
