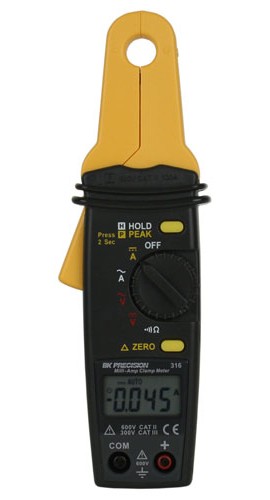

B&K Precision 316 Mini AC/DC Clamp Meter

Model: 316 | Order No: 316/A | UPC: 817050031607

Ideal for quick non-intrusive current measurements.

Sale Price	$194.75 USD
Regular Price	$205.00 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 316/A Mini AC/DC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your 316/A Mini AC/DC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

B&K 316 Offers

The 316 is the perfect Clamp Meter for many electronic applications. Because this meter was designed to measure smaller amounts of current it is ideal for quick non-intrusive current measurements.

Features

Auto power off
4 Digit LCD display
Low battery indicator
0.49" Clamp opening
Overload protection
AC/DC Amp ranges 10A, 80A & 100A
1mA (10A range) & 10mA resolution
Measures current between 5% to 100% full scale
Measures AC/DC Volts to 600V
Measures resistance to 10K ohms
One year warranty

B&K 316 Specifications

	Range	Resolution	Accuracy
AC Current	10A	1mA	2% ±10dgt
	80A	10mA
	80-100A	10mA	3.5% ±10dgt
DC Current	10A	1mA	2.5% ±10dgt
	80A	10mA
	80-100A	10mA	4.5% ±10dgt
AC Voltage	600V	100mV	1.5% ±5dgt
DC Voltage	600V	100mV	1% ±2dgt
Resistance	10KΩ	1Ω	1% ±3dgt

Click here for complete specifications on the B&K 316

What's included with the B&K 316

Clamp Meter
Test lead
1.5 V Battery (2)
Instruction Manual
Carrying Case
