Baker LF45 Series Liquid Filled Pressure Gauge, 30"-0 to 30 psi, 4.5" dial, ½" NPT bottom, impact resistant phenolic case

Model: LF45-30-1/2 | UPC: 800837026798

$Baker LF45 Series Liquid Filled Pressure Gauge, 30&quot;-0 to 30 psi, 4.5&quot; dial, &frac12;&quot; NPT bottom, impact resistant phenolic case-$

Image is for reference only, refer to product info for complete details.

Downloads: datasheet

More Baker Products

Ask an Expert

Baker LF45 Series Liquid Filled Pressure Gauge, 30"-0 to 30 psi, 4.5" dial, ½" NPT bottom, impact resistant phenolic case

Model: LF45-30-1/2 | UPC: 800837026798

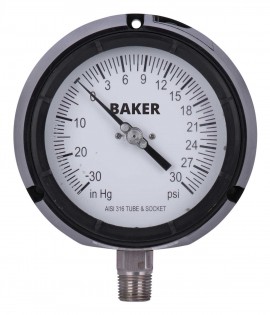

This pressure gauge features a 4.5" diameter dial with a black impact resistant phenolic case. Features a stainless steel tube and socket. 30"-0-30 PSI.

Sale Price	$143.10 USD
Regular Price	$159.00 USD
Availability	2 to 3 Weeks7 to 8 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your LF45-30-1/2 Series Liquid Filled Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG1) for only $110.00 USD

Traceable Calibration Certificate for your LF45-30-1/2 Series Liquid Filled Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG1) for only $110.00 USD

Baker LF45-30-1/2 Offers

Features

Black, impact resistant phenolic case
316 stainless steel bourdon tube and socket
Shatterproof glass lens
Micrometer adjustable pointer
Transient over-pressure limit: 30%
Silicone fluid filled and rated for -50 to 170°F
Integral back flange with safety blowout backplate

Applications

Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories

Baker LF45-30-1/2 Specifications

Dial Diameter	4½"
Pressure Range	30"-0-30 psi
Accuracy	±0.5% F.S.accuracy
Connection	1/2" NPT Bottom Mount
Dial Type	Analogue
Figure Intervals	3 psi
Minor Divisions	0.5 psi

Click here for complete specifications on the Baker LF45-30-1/2

What's included with the Baker LF45-30-1/2

Baker LF45 Series Liquid Filled Pressure Gauge, 30"-0 to 30 psi, 4.5" dial, ½" NPT bottom, impact resistant phenolic case

datasheet for the Baker LF45 Series Liquid Filled Pressure Gauge, 30"-0 to 30 psi, 4.5" dial, ½" NPT bottom, impact resistant phenolic case

Description ➕➖
