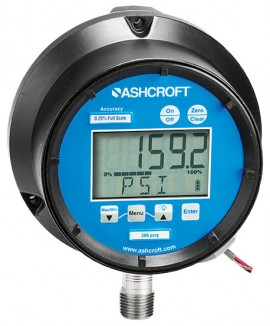

A 4 to 20 mA loop-powered industrial digital pressure gauge that offers a pressure range of 0 to 3000 psi, and an accuracy of 0.25% full scale. Features polysilicon thin-film technology, making pressure measurement extremely reliable, and virtually unaffected by shock and vibration.
A 4 to 20 mA loop-powered industrial digital pressure gauge that offers a pressure range of 0 to 3000 psi, and an accuracy of 0.25% full scale. Features polysilicon thin-film technology, making pressure measurement extremely reliable, and virtually unaffected by shock and vibration.
Features
Applications
| Erreur de temp. | 0.04%/°F (<0.02%/°F - typique) |
| Pressure Ranges | Vacuum thru 20,000 psi |
| Temperature Error (Zero & Span) | 0.04%/°F (<0.02%°F typical) |
| Accuracy | ±0.25% full scale, terminal point |
| Case | Size: 4.5" Material: Fiberglass reinforced thermoplastic or black epoxy coated aluminum Rating: Weatherproof, IP65 |
| Wetted Materials | 17-4 SS (sensor); 316SS (socket) |
| Socket Size | Size: ¼" NPT, ½" NPT (typical) Location: Lower, 3, 9, 12 o'clock |
| Overpressure Limits (F.S.) | Proof: 200% (15 to 2000), 150% (3000 to 5000), 120% (7500 to 20,000) Burst: 800% (15 to 2000), 300% (3000 to 5000), 150% (7500 to 20,000) |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Display | Type: LCD Digits: Five Character height: 0.88" |
| Battery Life | >2000 hrs |
| Erreur de temp. | 0.04%/°F (<0.02%/°F - typique) |
| Pressure Ranges | Vacuum thru 20,000 psi |
| Temperature Error (Zero & Span) | 0.04%/°F (<0.02%°F typical) |
| Accuracy | ±0.25% full scale, terminal point |
| Case | Size: 4.5" Material: Fiberglass reinforced thermoplastic or black epoxy coated aluminum Rating: Weatherproof, IP65 |
| Wetted Materials | 17-4 SS (sensor); 316SS (socket) |
| Socket Size | Size: ¼" NPT, ½" NPT (typical) Location: Lower, 3, 9, 12 o'clock |
| Overpressure Limits (F.S.) | Proof: 200% (15 to 2000), 150% (3000 to 5000), 120% (7500 to 20,000) Burst: 800% (15 to 2000), 300% (3000 to 5000), 150% (7500 to 20,000) |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Display | Type: LCD Digits: Five Character height: 0.88" |
| Battery Life | >2000 hrs |
