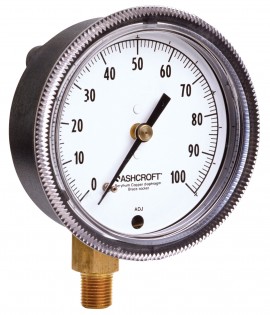

Designed to measure pressure from 10 in. H2O to 15 psi, both positive and negative pressures. An ideal product for non-corrosive gas measurement. Not suitable for liquids.
Designed to measure pressure from 10 in. H2O to 15 psi, both positive and negative pressures. An ideal product for non-corrosive gas measurement. Not suitable for liquids.
Features
Applications
| Accuracy | ±2-1-2% Full Scale (Grade A, ASME B40.100) |
| Ranges | 10" H2O through 15 psi including vac. and compound |
| Dial Size | 2½" and 3½" Diameter |
| Case Material | Black, Glass Filled Polysulfone |
| Socket Material | Brass |
| Movement | Brass |
| Sensing Element | Beryllium Copper Diaphragm |
| Wetted Material | Beryllium Copper, Brass, Polysulfone and RTV Silicone |
| Window | Polycarbonate, Quarter Turn Bayonet Style Mounting |
| Dial | Aluminum, White Background, Black Figures and Intervals |
| Pointer | Black, Aluminum, Fixed |
| Connection Size | 1⁄4 NPT (02) |
| Connection Location | Lower |
| Operating Temperature | –20 to 180°F (28.89 to 82.22°C) |
| Proof Pressure | 150% of Range |
| Burst Pressure | Up to 5 psi = 50 psi Greater than 5 psi = 100 psi |
| Accuracy | ±2-1-2% Full Scale (Grade A, ASME B40.100) |
| Ranges | 10" H2O through 15 psi including vac. and compound |
| Dial Size | 2½" and 3½" Diameter |
| Case Material | Black, Glass Filled Polysulfone |
| Socket Material | Brass |
| Movement | Brass |
| Sensing Element | Beryllium Copper Diaphragm |
| Wetted Material | Beryllium Copper, Brass, Polysulfone and RTV Silicone |
| Window | Polycarbonate, Quarter Turn Bayonet Style Mounting |
| Dial | Aluminum, White Background, Black Figures and Intervals |
| Pointer | Black, Aluminum, Fixed |
| Connection Size | 1⁄4 NPT (02) |
| Connection Location | Lower |
| Operating Temperature | –20 to 180°F (28.89 to 82.22°C) |
| Proof Pressure | 150% of Range |
| Burst Pressure | Up to 5 psi = 50 psi Greater than 5 psi = 100 psi |
