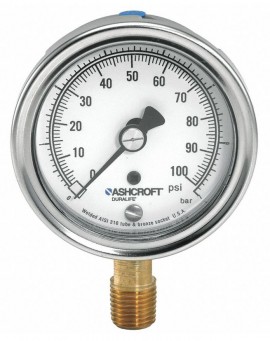

Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5" dial, ¼" NPT male lower, SS housing

Model: 251009SW02LX6B100#

$Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5&quot; dial, &frac14;&quot; NPT male lower, SS housing-$

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

Configure This Product!

More Ashcroft Products

Ask an Expert

Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5" dial, ¼" NPT male lower, SS housing

Model: 251009SW02LX6B100#

The pressure gauge is cleaned for oxygen services and offers exceptional quality, durability, and performance. An ideal choice for satisfying most applications and installation requirements.

Sale Price	$134.25 USD
Regular Price	$150.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 251009SW02LX6B100# Ashcroft 1009 Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Traceable Calibration Certificate for your 251009SW02LX6B100# Ashcroft 1009 Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Ashcroft 251009SW02LX6B100# Offers

Features

Meets ASME B40.100 specifications
Corrosion resistant SS case
Dry gauges are field fillable
PowerFlex™ movement provides superior resistance to shock, vibration and pulsation
True Zero™ reduces reading errors by using "zero box" instead of conventional dial pins
PLUS!™ performance available for liquid filled performance with a dry gauge
MSL helium leak tested to 1X10-6 scc/s
Ventable fill plug
Accessory kits for easy panel mounting

Applications

Pumps and compressors
Boilers
Equipment skids
Specialized OEM equipment
Hydraulics and pneumatics
Severe ambient conditions

Ashcroft 251009SW02LX6B100# Specifications

Accuracy	ASME B40.100, Grade 1A, +1% of Span
Dial Size	2½" (63mm)
Range	0 to 100 psi
Wetted Materials
Tube	316L SS Tube
Process Connection	316L SS Socket
Non Wetted Materials
Window	Polycarbonate
Dial	Black Figures on White Background, Aluminum
Pointer	Black, Aluminum, Adjustable
Movement	PowerFlex Movement Bottom Plate – 304 SS Upper Plate – 304 SS Pin – 304 SS Hairspring Assembly – 304 SS Pinion – 304 SS Segment – Glass Filled Polyester
Case	304 SS
Ring	304 SS
Process Connection Location	Lower
Process Connection Sizes	¼ NPT
Dampening	Glycerin Case Fill
Weather Protection	Plug Closed: IP65 Plug Vented: IP54 Plug Closed: NEMA 4X
Approvals	CRN, RoHS, PED

Click here for complete specifications on the Ashcroft 251009SW02LX6B100#

What's included with the Ashcroft 251009SW02LX6B100#

Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5" dial, ¼" NPT male lower, SS housing

datasheet for the Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5" dial, ¼" NPT male lower, SS housing manual for the Ashcroft 1009 Pressure Gauge, 0 to 100 psi, 2.5" dial, ¼" NPT male lower, SS housing
