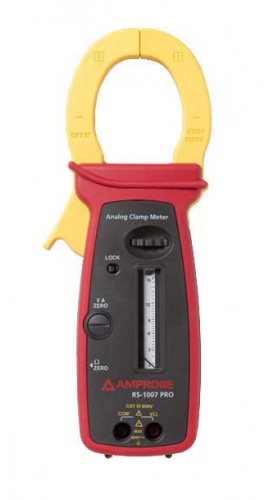

This safety rated analog clamp meter is ideal for applications with extreme temperatures where digital LCD screens could freeze. Features easy to use rotary scale that measures volts and amps with no batteries required.
This safety rated analog clamp meter is ideal for applications with extreme temperatures where digital LCD screens could freeze. Features easy to use rotary scale that measures volts and amps with no batteries required.
Features
Applications
| AC Voltage | 150, 300, 600 V |
| AC Current | 15, 40, 100, 300, 1000 A |
| Resistance | 1000 Ω |
| Accommodates conductors | Up to 1.88" (47 mm) in diameter |
| Safety LVD | Category IV – 600 Volts AC Meets EN60101-1:2001; EN61010-2-032:2002; pollution degree : II; class 2 |
| Display | Analog scales with clamping needle |
| Jaw opening/conductor diameter | 1.88" (47 mm) max |
| Power supply volt/amp | 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Environmental | Indoor operation; below 6562' (2000 m) |
| AC Voltage (50/60 Hz) | 150 / 300 / 600 Vrms |
| Accuracy | ±3% of full scale |
| Input impedance | 1.5 MO |
| AC Amp (50/60 Hz) range | 6 / 15 / 40 / 100 /600 Amps |
| Ohms range | 1000Ω ; 25Ω mid-scale |
