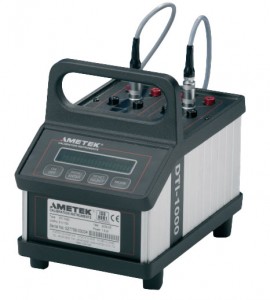

The DTI-1000 is a high-precision digital temperature indicator used for accurate and reliable temperature measurement. With a legacy of reliable, low-drift calibration tools, this digital temperature indicator is ideal for many applications, ensuring optimal performance in any environment.
The DTI-1000 is a high-precision digital temperature indicator used for accurate and reliable temperature measurement. With a legacy of reliable, low-drift calibration tools, this digital temperature indicator is ideal for many applications, ensuring optimal performance in any environment.
Unmatched accuracy and stability
The DTI-1000 boasts a one-year accuracy of ±0.004°C, making it one of the most precise digital temperature indicators available. when paired with sts series temperature sensors, the system accuracy improves to ±0.03°c. this level of accuracy ensures that it can handle the most demanding calibration requirements, making it an essential tool for quality assurance in various industries, including pharmaceuticals, aerospace, and energy.
Wide temperature range
The DTI-1000 is versatile enough to cover a broad temperature range from -328 to 1382°F (-200 to 750°C). This wide operating range allows it to be used across various applications, from cryogenic environments to high-temperature industrial processes. This ensures its utility in both specialized and general-purpose temperature calibration tasks.
High resolution for precise readings
With a resolution of up to 0.001°C, the DTI-1000 provides incredibly detailed and accurate temperature measurements. This high resolution allows users to detect even the smallest temperature variations, critical for research and development, environmental testing, and process control applications.
Dual channel inputs with differential measurement option
The DTI-1000 features dual-channel inputs, enabling simultaneous monitoring of two different temperature points. The differential measurement option allows users to compare temperatures directly, providing valuable insights for experiments and quality control processes. This feature is handy in laboratories and industrial settings where precise temperature comparisons are necessary.
Versatile sensor options and true ohm measurement
To accommodate various application needs, the DTI-1000 supports a wide selection of temperature sensors, including straight, 90-degree, and cabled options. True Ohm Measurement technology eliminates Electromotive Force (EMF) interference in cables, sockets, and sensors, ensuring the highest level of measurement integrity and accuracy. This feature enhances the reliability of temperature readings, making the DTI-1000 an indispensable tool for critical calibration and testing tasks.
Durability and long-term reliability
Engineered for long-term reliability, the DTI-1000 maintains its accuracy over extended periods, minimizing the need for frequent recalibration. Its robust design ensures durability in various environments, making it suitable for both laboratory and field use. The combination of high precision, versatile functionality, and user-friendly features makes the DTI-1000 a top choice for professionals seeking reliable temperature measurement solutions.
Applications
| Functional | |
| Input Interface | 0-95Ω |
| Accuracy (12 months use) | ±(6 ppm rdg + 0.7 mΩ) |
| Main Specifications | |
| Temperature Range | -328°F (-200°C) 32°F (0°C) 311°F (155°C) 392°F (200°C) 608°F (320°C) 752°F (400°C) 1202°F (650°C) 1382°F (750°C) With Pt25: ±0.013°F (±0.007°C) ±0.015°F (±0.008°C) ±0.016°F (±0.009°C) ±0.018°F (±0.010°C) ±0.022°F (±0.012°C) ±0.023°F (±0.013°C) ±0.030°F (±0.017°C) ±0.030°F (±0.017°C) |
| Temperature Coefficient | Outside 73°F ±5°F (Outside 23°C ±3°C) 0.45 ppm/°F/0.8 ppm/°C |
| Input Channels | 2 |
| Termination | Gold-plated LEMO/4mm banana test sockets |
| Resolution | 0.1, 0.01, or 0.001°C/F/K/Ω |
| Update Rate (0.1/0.01/0.001°) | 2/3/12 seconds |
| Measuring Units | °C, °F, K, and Ω |
| Measuring Current | 1 mA |
| Serial Data Interface | RS232 |
| Display | VFD, two lines, 20 characters alphanumeric |
| Operating Temperature (Ambient) | 32 to 122°F (0 to 50°C) |
| Storage Temperature (Ambient) | -4 to 140°F (-20 to 60°C) |
| Humidity | 0 to 90% RH |
| Power Supply | Mains Adapter: 9 VDC/200 mA Battery: 8 x 1.5 V (Type AA) Battery Life: Typically 15 hours |
| Dimensions | 8.9 × 5.3 × 7.7" (225 × 135 × 195 mm) Shipping: 23.6 × 15.0 × 12.2" (600 × 380 × 310 mm) |
| Weight | 4.9 lb (2.2 kg) Shipping: 22.9 lb (10.4 kg) |
Click on a category to view a selection of compatible accessories with the AMETEK Jofra DTI-1000 B Digital Temperature Indicator with Pt25 sensor, -328 to 1382°F.
