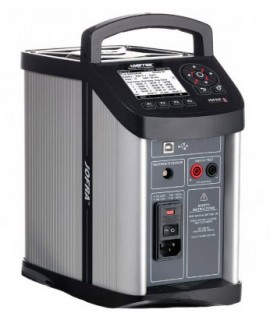

Compact and lightweight, this portable temperature calibrator offers fast and reliable calibrations and is ideal for on-site use. Features a temperature range of 82 to 662°F (28 to 350°C), improved accuracy, and a purpose-dedicated temperature regulator for quick heating and cooling time and a short stabilization period.
Compact and lightweight, this portable temperature calibrator offers fast and reliable calibrations and is ideal for on-site use. Features a temperature range of 82 to 662°F (28 to 350°C), improved accuracy, and a purpose-dedicated temperature regulator for quick heating and cooling time and a short stabilization period.
With a large color display, this portable temperature calibrator features automatic switch test and auto-stepping functions.
Features
Applications
| Temperature | |
| Temperature Range | 82 to 662°F (28 to 350°C) |
| Lowest Calibration Temperature | Ambient 41°F (5°C) |
| Stability | ±0.09°F (±0.05°C) |
| Radial Homogeneity (Difference Between Holes) | At 662°F (350°C): 0.072°F (0.04°C) At 392°F (200°C): 0.036°F (0.02°C) |
| Settings | Resolution: 1 or 0.1 or 0.01 Units: °C or °F or K |
| Heating Time | 73 to 662°F (23 to 350°C): 6 minutes |
| Cooling Time | 662 to 212°F (350 to 100°C): 20 minutes 212 to 122°F (100 to 50°C): 14 minutes |
| Time to Stability (Typical) | 10 minutes |
| General Specifications | |
| Switch Input (Dry Contact) | Test voltage: maximum 14 VDC Test current: maximum 1 mA |
| Digital Interface | USB 2.0 |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 122°F (-20 to 50°C) |
| Humidity | 5 to 90% RH, non-condensing |
| Protection Class | IP10 |
| Wall Diameter | 1.02" (26 mm) |
| Dimensions | 9.76 x 5.83 x 12.01" (248 x 148 x 305 mm) |
| Weight | 11 lbs (5 kg) |
| Temperature | |
| Temperature Range | 82 to 662°F (28 to 350°C) |
| Lowest Calibration Temperature | Ambient 41°F (5°C) |
| Stability | ±0.09°F (±0.05°C) |
| Radial Homogeneity (Difference Between Holes) | At 662°F (350°C): 0.072°F (0.04°C) At 392°F (200°C): 0.036°F (0.02°C) |
| Settings | Resolution: 1 or 0.1 or 0.01 Units: °C or °F or K |
| Heating Time | 73 to 662°F (23 to 350°C): 6 minutes |
| Cooling Time | 662 to 212°F (350 to 100°C): 20 minutes 212 to 122°F (100 to 50°C): 14 minutes |
| Time to Stability (Typical) | 10 minutes |
| General Specifications | |
| Switch Input (Dry Contact) | Test voltage: maximum 14 VDC Test current: maximum 1 mA |
| Digital Interface | USB 2.0 |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 122°F (-20 to 50°C) |
| Humidity | 5 to 90% RH, non-condensing |
| Protection Class | IP10 |
| Wall Diameter | 1.02" (26 mm) |
| Dimensions | 9.76 x 5.83 x 12.01" (248 x 148 x 305 mm) |
| Weight | 11 lbs (5 kg) |
