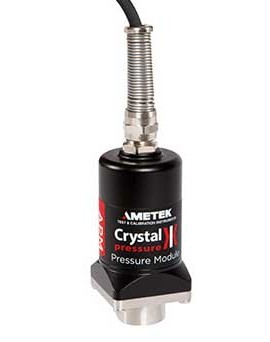

Offers the functionality and flexibility to perform pressure calibrations, this multi-purpose signal calibrator is portable and its range can be expanded when connected to a hand-held pressure calibrator. With a 0 to 1000 psi range, the signal calibrator delivers high-level accuracy.
Offers the functionality and flexibility to perform pressure calibrations, this multi-purpose signal calibrator is portable and its range can be expanded when connected to a hand-held pressure calibrator. With a 0 to 1000 psi range, the signal calibrator delivers high-level accuracy.
Provides high accuracy at any temperature and offers seamless integration with calibrators.
Features
Applications
| Accuracy | 0.05% of Reading modules |
| Range | 0 to 1000 psi |
| Overpressure | 2 x |
| Sensor Wetted Materials | 316 stainless steel and Viton (internal o-ring) |
| Sensor Diaphragm Seal Fluid | Silicone oil |
| Sensor Connection | Crystal CPF female |
| Output | Pressure resolution: up to 6 digits Display update: up to 10 per second |
| Communication | Connector: 5-pin LEMO Serial: 9600 baud, 8 data, no parity, 1 stop Protocol: ASCII command language |
| Pressure Overload | Overload alarm "+OL" in display at 110% F.S. |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions/td> | 1.4 x 1.4 x 3" (35.5 x 35.5 x 76.2 mm) |
| Weight | 0.51 lbs (231.0 g) |
| Accuracy | 0.05% of Reading modules |
| Range | 0 to 1000 psi |
| Overpressure | 2 x |
| Sensor Wetted Materials | 316 stainless steel and Viton (internal o-ring) |
| Sensor Diaphragm Seal Fluid | Silicone oil |
| Sensor Connection | Crystal CPF female |
| Output | Pressure resolution: up to 6 digits Display update: up to 10 per second |
| Communication | Connector: 5-pin LEMO Serial: 9600 baud, 8 data, no parity, 1 stop Protocol: ASCII command language |
| Pressure Overload | Overload alarm "+OL" in display at 110% F.S. |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions/td> | 1.4 x 1.4 x 3" (35.5 x 35.5 x 76.2 mm) |
| Weight | 0.51 lbs (231.0 g) |
