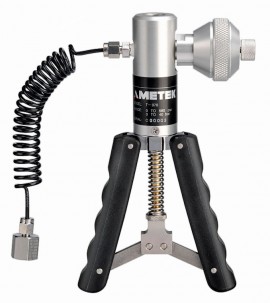

AMETEK M&G AM-T-960 Pneumatic Pressure Pump, 0 to 30 psi

Downloads: datasheet manual

Extended range vernier adjustment for precisely controlling pump pressure and comfortable pistol grip handle.

Features

Lightweight, compact design
Two outlet ports
Protected shuttle valve
Fine adjust sensitivity to 0.01 psi
Adjustable stroke
Extended range vernier adjustment for precisely controlling pump pressure
Generate pressure and vacuum with precision and ease, allowing users to fine-tune the pressure delivered with every stroke
Built-in relief valve and dual pressure output enable safe and simple operation
Comfortable pistol grip handle

Pressure Range	0 to 30 psi (2 bar)
Type	Pneumatic
Test Medium	Air
Operation	Scissor
O Rings	Buna-N
Wetted Parts	Aluminum, brass, stainless steel
Test Connections	24" (0.6 m) hose with ¼" BSP and NPT female
Dimensions	8.5 x 4.8 x 2.4" (21.6 x 12.1 x 6.2 cm)
Weight	3.0 lbs (1.4 kg)
