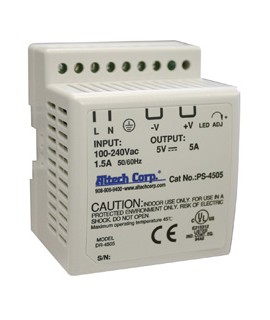

PS-45 series DIN rail mountable power supply with 5 VDC 5 A output and 25 W rated power. Low profile with single output class II and includes overload, overvoltage, and overtemperature protections.
PS-45 series DIN rail mountable power supply with 5 VDC 5 A output and 25 W rated power. Low profile with single output class II and includes overload, overvoltage, and overtemperature protections.
Features
| DC Voltage and rated current Output | 5 V, 0 to 5 A |
| Rated Power | 25 W |
| Ripple & Noise (max) | 100 mVp-p |
| Voltage Adj. Range | 4.75 to 5.5 V |
| Voltage Tolerance | ±2.0% |
| Input Voltage Range | 85 to 264 VAC |
| Input Frequency Range | 47 to 63 Hz |
| Overload Protection | 105 to 160% rated output power |
| Overvoltage Protection | 5.75 to 6.75 V |
| Working Temperature | 14 to 122°F (-10 to 50°C) |
| DC Voltage and rated current Output | 5 V, 0 to 5 A |
| Rated Power | 25 W |
| Ripple & Noise (max) | 100 mVp-p |
| Voltage Adj. Range | 4.75 to 5.5 V |
| Voltage Tolerance | ±2.0% |
| Input Voltage Range | 85 to 264 VAC |
| Input Frequency Range | 47 to 63 Hz |
| Overload Protection | 105 to 160% rated output power |
| Overvoltage Protection | 5.75 to 6.75 V |
| Working Temperature | 14 to 122°F (-10 to 50°C) |
