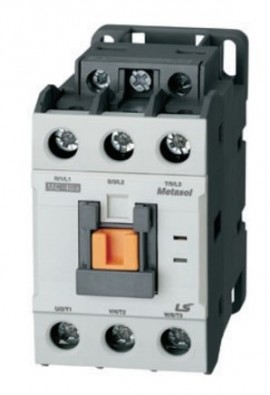

Offers a frame size of 40AF, this three-pole contractor with AC coil voltage of 120 V and frequency of 50/60 Hz is UL certified and meets IEC and CSA standards. Includes two UA-1-11 frames and a 2NO/2NC auxiliary switch.
Offers a frame size of 40AF, this three-pole contractor with AC coil voltage of 120 V and frequency of 50/60 Hz is UL certified and meets IEC and CSA standards. Includes two UA-1-11 frames and a 2NO/2NC auxiliary switch.
Features
| Maximum Voltage | 600V AC |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | 23 to 104°F (-5 to 40°C) |
| Degree of protection | IP20 |
| Resistance to Vibration (5 to 300 Hz) | > 15 g |
| Flame Resistance | According to UL94 |
| Number of Poles | Three |
| NEMA Size | 1 |
| Standard Auxiliaries | 2NO/2NC |
| Coil Voltage | 120 V AC |
| Frame Size | 40AF |
| Maximum Voltage | 600V AC |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | 23 to 104°F (-5 to 40°C) |
| Degree of protection | IP20 |
| Resistance to Vibration (5 to 300 Hz) | > 15 g |
| Flame Resistance | According to UL94 |
| Number of Poles | Three |
| NEMA Size | 1 |
| Standard Auxiliaries | 2NO/2NC |
| Coil Voltage | 120 V AC |
| Frame Size | 40AF |
