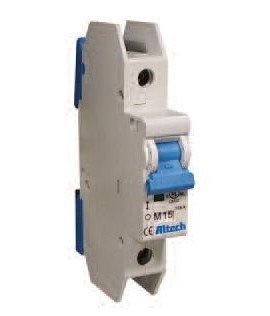

Altech 1DU1 D-Trip UL489 AC Circuit Breaker, one-pole, 1.0 A

Model: 1DU1 | Order No: 1DU1L

Downloads:

Altech 1DU1 D-Trip UL489 AC Circuit Breaker, one-pole, 1.0 A

Model: 1DU1 | Order No: 1DU1L

UL489 listed AC version miniature circuit breaker with a molded case has D-trip characteristics ideal for branch circuit protection. DIN rail mounted and features a magnetic trip-point and relatively long thermal trip delay that works on applications like high inrush motors, transformers, and power supplies.

Sale Price	$24.04 USD
Regular Price	$32.49 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Altech 1DU1 Offers

Features

DIN rail mounted
Thermal magnetic
10 kA short circuit interrupting capacity
Positive trip indicator (green - off/tripped, red - on)
Line/Load reversible

Applications

High inrush motors
Transformers
Power supplies
Heaters
Reactive loads
Appliance circuits

Altech 1DU1 Specifications

Voltage Rating	0.2 to 63 A / 240 V AC, 0.2 to 32 A / 480 Y / 277 V AC
Rated Current	1.0 A
Number of Pole	1
Trip Characteristics	D
Interrupting Capacity	10 kA
Terminal Torque (min/max)	2 Nm (17.7 lb.in.) / 2.5 Nm (22.2 lb.in)
Electrical Life	6,000 switching cycles ON/ OFF
Mechanical Life	10,000 switching cycles ON/ OFF
Vibration Resistance	> 15 g according to DIN EN 60069-2-59 during a load with 1.05
Resistance to mechanical shocks	25 g @ 11 ms
Degree of protection acc. IEC/EN 60529	IP20
Temperature Range	Calibration 104°F (40°C) Operating -13 to 140°F (-25 to 60°C) Storage -13 to 167°F (-25 to 75°C)
Mounting Orientation	In any plane
Dimension	4.29 x 2.62 x 0.69" (109 x 66.5 x 17.5 mm)
Weight	3.74 lb (1.7 kg)

Click here for complete specifications on the Altech 1DU1

What's included with the Altech 1DU1

Altech 1DU1 D-Trip UL489 AC Circuit Breaker, one-pole, 1.0 A
