Specific, Convenient Data Collection & Storage

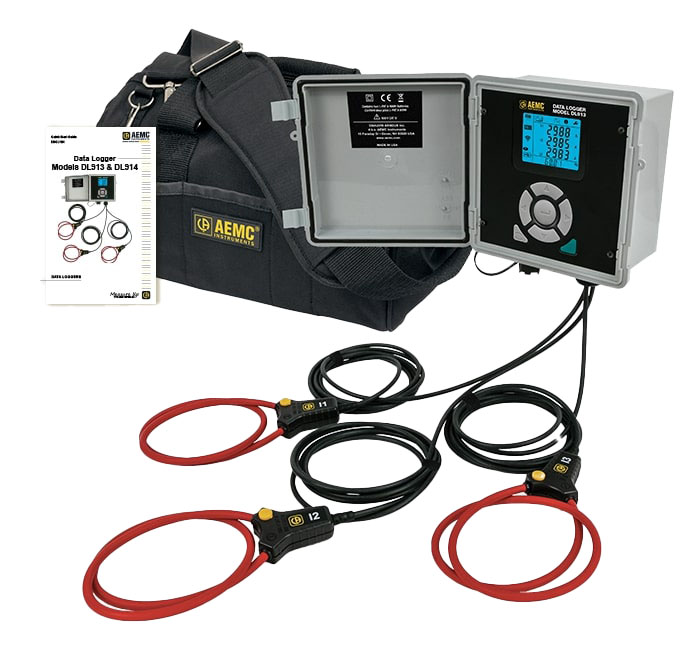

Rugged and easy to use, this three-channel data logger features three integral flexible, water-resistant current sensors and two measurement ranges of up to 300 and 3000 A. In addition, this data logger is for indoor and outdoor use, offers Wi-Fi and USB-to-PC communication, and has a backlit LCD.
Rugged and easy to use, this three-channel data logger features three integral flexible, water-resistant current sensors and two measurement ranges of up to 300 and 3000 A. In addition, this data logger is for indoor and outdoor use, offers Wi-Fi and USB-to-PC communication, and has a backlit LCD.
Data storage rates are as fast as once per second with this data logger, which comes with a selection of data storage modes and data sampling rates that are user programmable through the DataView® software. In addition, this data logger's sensors are capable of wrapping around a 7.64" (194.06 mm) conductor and measurements are stored in internal nonvolatile memory.
Features
Applications
Control features - front panel
The data logger's LCD display allows the user to confirgure and set up a recording with selected parameters for which specific user-defined criteria can be applied. Measurements are recorded and can be accessed for analysis and report generation on a PC utilizing our proprietary DataView® sosftware.
1. LCD displays measurement data and viewing parameters such as memory, power, and communication status
2. Navigation buttons (Up ▲, Down ▼, Left ◄, Right ►) navigate the configuration options and measurement screens
3. Power button turns the instrument ON and OFF with a press (≥3 seconds) when the instrument is disconnected from external power and not actively recording. A short press (≥3 seconds) turns the LCD backlight on
4. Control button starts and stops recordings and selects and enables the Wi-Fi communication type
5. Enter button cycles through the displayed data and options
DataView data analysis and reporting software
| Channels | Three |
| Inputs | MiniFlex® |
| Measurement Ranges | 300 to 3000 A AC |
| Accuracy | 300 A range: (0.5 to 99.99) A ±(1%r + 10 D) (90 to 360) A ±(1%r + 4 D) 3000 A range: (4 to 99.99) A ±(1%r + 10 D) (90 to 999.9) A ±(1%r + 5 D) (0.9 to 3.6) kA ±(1%r + 4 D) |
| Resolution | 300 A range: 0.01 A 0.1 A 3000 A range: 0.01 A 0.1 A 1 A |
| Frequency | 45 to 65 Hz ± 0.1 Hz |
| Storage Rate | Normal recording mode: Once per second Extended recording mode: Four per aggregation period |
| Recording Length | Battery power: Four days with no missing samples (normal recording mode) 7 to 30 days depending on the selected aggregation period (extended recording mode) External power: 365 days |
| Memory | Internal 8 GB |
| Communication | USB, Wi-Fi via router (Ethernet), or Wi-Fi direct |
| Case | UL94-V0 flame retardant |
| Vibration | IEC 68-2-6 (1.5 mm, 10 to 55 Hz) |
| Shock | IEC 68-2-27 (30 G) |
| Drop | IEC 68-2-32 (3.3' [1 m] in the most severe position without permanent mechanical damage or functional deterioration) |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) Storage: -40 to 158°F (-40 to 70°C) |
| Relative Humidity | Operation: Up to 85% RH (non-condensing) Storage: Up to 95%RH |
| Battery Charge Time | 10 hours maximum (Wi-Fi off) |
| Power Sources | Internal: 4.2 A·h NiMH rechargeable battery pack External: USB connection |
| Dimensions | 5.9 x 5.9 x 3.57" (150 x 150 x 91 mm) without sensors Sensor/cable length: 3 integral 24" (609.6 mm) MiniFlex® probes with 6.5' (2 m) leads Maximum conductor: 7.64" (190 mm) |
| Weight | 2.2 lbs (1 kg) with battery |
