Single channel thermometer features RTD temperature measurement with selectable 100 or 1000 Ohm platinum sensor. Spot or continuous recording of up to 1 million measurements.
Single channel thermometer features RTD temperature measurement with selectable 100 or 1000 Ohm platinum sensor. Spot or continuous recording of up to 1 million measurements.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Temperature Data Loggers category for similar products.
Or let's do a search and help you find what you need:

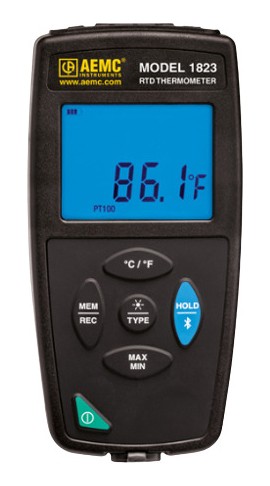

This RTD Thermometer Data Logger is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView® software.
Features
| Channel | One with LCD display and backlit |
| Input Connection | One standard RTD connector |
| Sensor Type | RTD100 or RTD1000 |
| Measurement Range | -148 to 752°F (-100 to 400°C) |
| Accuracy | ± (0.4% of R + 0.6°F/0.3°C) |
| Resolution | 0.1°F or °C |
| Sampling Rate | Programmable for 1 sec, 2 sec, 5 sec, 10 sec, 20 sec, 30 sec, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr |
| Storage Modes | Start/Stop and Alarm | Dimensions | 5.9 x 2.84 x 1.28" (150 x 72 x 32 mm) |
| Weight | 9.2 oz (260 g) with batteries |
Click on a category to view a selection of compatible accessories with the AEMC 1823 RTD Thermometer/Data Logger.
| Channel | One with LCD display and backlit |
| Input Connection | One standard RTD connector |
| Sensor Type | RTD100 or RTD1000 |
| Measurement Range | -148 to 752°F (-100 to 400°C) |
| Accuracy | ± (0.4% of R + 0.6°F/0.3°C) |
| Resolution | 0.1°F or °C |
| Sampling Rate | Programmable for 1 sec, 2 sec, 5 sec, 10 sec, 20 sec, 30 sec, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr |
| Storage Modes | Start/Stop and Alarm | Dimensions | 5.9 x 2.84 x 1.28" (150 x 72 x 32 mm) |
| Weight | 9.2 oz (260 g) with batteries |
Click on a category to view a selection of compatible accessories with the AEMC 1823 RTD Thermometer/Data Logger.
