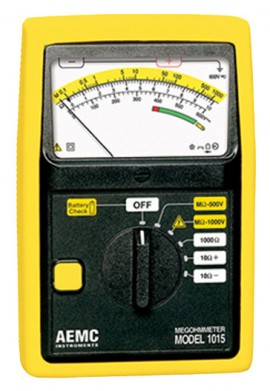

This analog instrument has four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. It permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω.
This analog instrument has four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. It permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω.
Features
Applications
| Insulation Tests | |
| Test Voltage | 500 V: 0.1 to 1000MΩ 1000 V: 0.1 to 1000MΩ |
| Short Circuit Current | Max: ≤6mA |
| Accuracy | ±5% of Reading |
| Voltage Test/Safety Check | AC: 0 to 600 V |
| Resistance Tests | |
| Measurement Range | 0 to 1000Ω |
| Accuracy | ±3% Full Scale |
| Short Circuit Current | ≥2mA |
| Open Circuit Voltage | 4.5 to 6.5 V |
| General Specifications | |
| Power Supply | 4 x 1.5V "AA" Alkaline Batteries |
| Dimensions | 6.6 x 4.2 x 2.2" (167 x 106 x 55 mm) |
| Weight | 1.45 lbs (650 g) |
