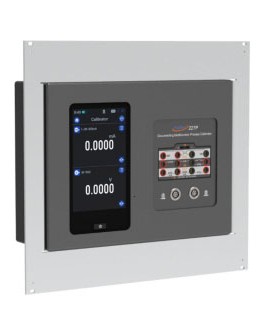

Additel 227 Series Multifunction Process Calibrator, 150 mV to 15 V, 0.005% RDG, high accuracy, panel mount

Model: ADT227P

Downloads: datasheet manual

Additel 227 Series Multifunction Process Calibrator, 150 mV to 15 V, 0.005% RDG, high accuracy, panel mount

Model: ADT227P

The 227 series is portable, functional and accurate with an range of 150 mV to 15 V, and accuracy of 0.005% RDG. This model comes in a panel mount.

Your Price	$9862.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Additel ADT227P Offers

Additel’s new Multi-functional Documenting Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. This series includes an advanced documenting pressure calibrator (ADT227) and an advanced documenting process calibrator with a built-in HART communicator (ADT227-HART). Additionally, each calibrator has an ATEX certified intrinsically safe option (ADT227Ex) allowing you to perform calibration in the harshest of environments. We’re confident these new tools will not only meet your calibration requirements but will make metrology simple for you!

Features

Sourcing, Simulating and Measuring Pressure, Temperature and Electrical Signals
Built-in Barometer
Large Smartphone Like Touchscreen User Experience
USB Type-C and Bluetooth Communications
IP67 Rated
High Voltage Measurement Capability (300V AC)
True RMS Voltage Meter Capability
Dual Channel Pressure Module Ports
High Static Differential Pressure Measurement 0.002% FS
ISO 17025-accredited Calibration w/data Included

Additel ADT227P Specifications

Sourcing
Voltage DC	Range: -150 to 150 mV Resolution: 5 uV Accuracy: 0.005%RDG + 15 uV Range: -1.5 to 1.5 V Resolution: 0.05 mV Accuracy: 0.005%RDG + 0.15 mV Range: -15 to 15 V Resolution: 0.5 mV Accuracy: 0.005%RDG + 1.5 mV
Current DC	Range: 0 to 25 mA Resolution: 0.5 uA Accuracy: 0.01%RDG + 1.2 uA
Resistance	Range: 0 to 400 Ω Resolution: 10 mΩ Accuracy: 0.005%RDG + 20 mΩ Range: 0 to 4000 Ω Resolution: 100 mΩ Accuracy: 0.01%RDG + 200 mΩ
Frequency (Square wave)	Range: (0.01 ~ 5) Hz Resolution: 0.00001 Hz Accuracy: 0.002%RDG + 0.00002 Hz Range: (5 ~ 50) Hz Resolution: 0.0001 Hz Accuracy: 0.002%RDG + 0.0002 Hz Range: (50 ~ 500) Hz Resolution: 0.001 Hz Accuracy: 0.002%RDG + 0.002 Hz Range: (500 ~ 5000) Hz Resolution: 0.01 Hz Accuracy: 0.002%RDG + 0.02 Hz Range: (5000 ~ 50000) Hz Resolution: 0.1 Hz Accuracy: 0.002%RDG + 0.2 Hz
Frequency (Sine wave & Triangular wave)	Range: (0.1 ~ 50) Hz Resolution: 0.001 Hz Accuracy: 0.002 Hz Range: (50 ~ 500) Hz Resolution: 0.01 Hz Accuracy: 0.02 Hz Range: (500 ~ 5000) Hz Resolution: 0.1 Hz Accuracy: 0.2 Hz Range: (5000 ~ 50000) Hz Resolution: 1 Hz Accuracy: 2 Hz
Duty Cycle	(1%~99%) at ≤10000Hz Resolution: 0.05% (5%~99%) at ≤50000Hz Resolution: 0.5% Accuracy: 0.1%/kHz + 0.1%
Voltage mV (TC)	Range: -10 to 75 mV Resolution: 1.5 uV Accuracy: 0.008%RDG + 3.0 uV
Pulse	Range: 0 to 9999999 Resolution: 1 Accuracy: N/A Optional rising edge or falling edge Minimum threshold voltage: 2.5V
Loop power (max 25mA)	Range: 24 V Resolution: N/A Accuracy: ±1 V
Measuring
Voltage DC	Range: -300 to 300 mV Resolution: 1 uV Accuracy: 0.005% RDG + 15 uV Range: -30 to 30 V Resolution: 0.1 mV Accuracy: 0.005% RDG + 1.5 mV Impedance: -300 mV to 300 mV => > 100 MΩ Impedance: -30 V to 30 V => > 1 MΩ
DC High Voltage	Range: -300 to 300 V Resolution: 10 mV Accuracy: 0.05% RDG + 30 mV Maximum input voltage = 300 V, IEC61010 300V CATII Common mode rejection: >100 dB (at 50 or 60 Hz) Impedance: > 4 MΩ, DC coupling
AC High Voltage	Range: 300 V (40 to 500 Hz) Resolution: 10 mV Accuracy: 0.5% RDG + 150 mV Maximum input voltage = 300 V, IEC61010 300V CATII 9% to 100% of range is suitable for the above accuracy indicators Impedance: > 4 MΩ, <100 pF, AC coupling
Current DC	Range: -30 to 30 mA Resolution: 0.1 uA Accuracy: 0.01% RDG + 1.5 uA
Resistance (4-Wire)	Range: 0 to 400 Ω Resolution: 1 mΩ Accuracy: 0.005% RDG + 20 mΩ Range: 0 to 4000 Ω Resolution: 10 mΩ Accuracy: 0.01% RDG + 200 mΩ 2-Wire + 50 mΩ, 3-wire + 10 mΩ Excitation current: 0.2 mA
Voltage mV (TC)	Range: -10 to 75 mV Resolution: 0.1 uV Accuracy: 0.008% RDG + 3.0 uV Impedance: > 100 MΩ
Frequency	Range: (0.01 ~ 5) Hz Resolution: 0.00001 Hz Accuracy: 0.002%RDG + 0.00002 Hz Range: (5 ~ 50) Hz Resolution: 0.0001 Hz Accuracy: 0.002%RDG + 0.0002 Hz Range: (50 ~ 500) Hz Resolution: 0.001 Hz Accuracy: 0.002%RDG + 0.002 Hz Range: (500 ~ 5000) Hz Resolution: 0.01 Hz Accuracy: 0.002%RDG + 0.02 Hz Range: (5000 ~ 50000) Hz Resolution: 0.1 Hz Accuracy: 0.002%RDG + 0.2 Hz Minimum threshold voltage: 2.5V Supported units: Hz, kHz, MHz, CPM, CPH, s, ms, μs
Duty Cycle	(1%~99%) at ≤10000Hz Resolution: 0.01% (5%~99%) at ≤50000Hz Resolution: 0.1% Accuracy: 0.1% kHz + 0.05%
Pulse	Range: 0 to 9999999 Resolution: 1 Accuracy: N/A Optional rising edge or falling edge Minimum threshold voltage: 2.5V
Switch	Supports dry or wet switches Voltage range of 3 to 30 V Response speed < 10 ms
General
Operating Temperature	14 to 122°F (-10 to 50°C)
Specification guaranteed temperature range	50 to 86°F (10 to 30°C)
Storage Temperature	-22 to 158°F (-30 to 70°C)
Humidity	<95%, non-condensing
Power supply	6600 mAh, 23.8 Wh lithium battery, charging time about 6 hours, battery pack can be charged independently
User interface	Icon driven menus
Ports protection voltage	50V max (Only for the top ports)
Display	5.0" (12.7 cm) 480 x 800 TFT LCD capacitive screen
Data logger	500 results, each result x 100,000 recordings, each recording records a maximum of 7 channel values
Maximum altitude	9843' (3000 m)
European Compliance	CE Mark
Electrical Connection	0.157" (Ø4mm) sockets and flat mini-jack thermocouple socket
Battery	Rechargeable Li-ion battery (included)
Battery Life	Typically 12 hours
Battery Charge	110V/220V external power adapter included. Battery can be charged external to the unit. Typically charge time is 6-8 hours.
External pressure module	Dual channel Serial plug, can connect two digital pressure modules
Warm-up time	Full specification performance is achieved after a 10 minute warm-up time.
ROHS compliant	Rohs II Directive 2011/65/EU, EN50581:2012
Display rate	3 readings per second
Barometric Accuracy (Built-in barometer)	0.0080 psi (55 Pa)
IP protection level	IP67, 3.28' (1 m) drop test
Communication	Isolate USB-TYPEC (slave), Bluetooth BLE
User Interface Localization	English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, Russian, Czech, Slovak
Calibration	ISO 17025 accredited calibration with data
Warranty	3 years
Dimensions	6.97 x 4.13 x 2.04" (177 x 105 x 52 mm)
Weight	1.6 lbs (0.7 kg)

Click here for complete specifications on the Additel ADT227P

What's included with the Additel ADT227P

Multifunction Process Calibrator
ISO 17025 Accredited Calibration Certificate
6 x Test Leads
2 x Right Angle Test Leads
Pressure Module Connection Cable
USB Cable Type A to Type C
Hanging Strap with Magnet
2 x Test Hooks
2 x Small Test Hooks
110/220 V Power Adapter
Chargeable Li-Ion Battery
Three-Year Warranty
