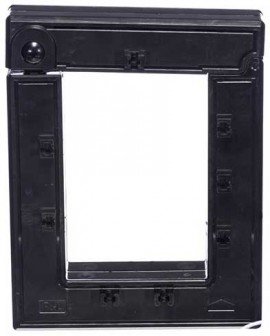

Accuenergy AcuCT-5170R-4000:333mV Split Core Current Transformer, 5.1 x 7" 4000 A:333 mV

Downloads: datasheet

Revenue grade, split-core current transformer features a window size of 5.1 x 7", current input of 4000 A and output of 333 mV.

Designed to be compact, simple and durable, these current transformers offer the highest accuracy while supporting the widest range of rated outputs.

Features

Up to 5000A AC current input range
Multiple output options including 5A, 1A, 80mA, 100mA, 200mA, 333mV
Sturdy latch locks the CT in place using a press-open mechanism for quick installation without disconnecting cables
Can be installed on cable, bus and panel
Listed to UL2808, 61010-1 and CSA 22.2
Revenue grade accuracy meets IEC61000-1 class 0.5
Multiple mounting options with included accessories
